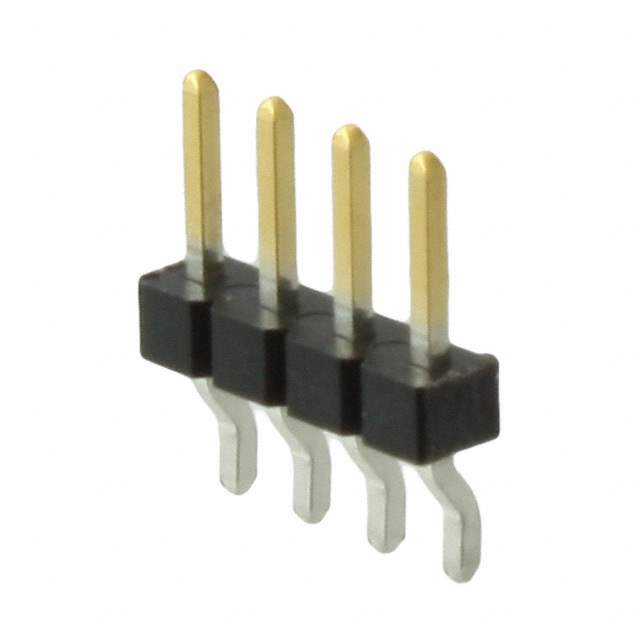

Same model may have multiple batches, images only for reference.

10112684-G03-04ULF

Name: 10112684-G03-04ULF
Brand: Amphenol
SKU: 1341144
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	10112684-G03-04ULF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 4POS 2MM / Connector Header Surface Mount, Right Angle 4 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Minitek® 2.00mm
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Unshrouded
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.157" (4.00mm)
Insulation Height	0.079" (2.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic, Glass Filled
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A (AC/DC)
Voltage Rating	200V (AC/DC)
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	10112684
Standard Package	72
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1341144-10112684-G03-04ULF
Ultra Librarian 3D Model	Ultra Librarian 10112684-G03-04ULF CAD Model

Alternative Products

Description

The Minitek® 2.00mm 4-position male pin header is an ideal connector for use in electronic devices manufactured by .

Mounting Type: Surface Mount, Right Angle
Fastening Type: Push-Pull
Style: Board to Cable/Wire
Voltage Rating: 200V (AC/DC)
Insulation Material: Thermoplastic, Glass Filled
Insulation Height: 0.079" (2.00mm)
Contact Finish: Gold or Gold, GXT™
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Type: Male Pin
Termination: Solder
Connector Type: Header, Unshrouded
Contact Shape: Square
Operating Temperature: -55°C ~ 125°C
