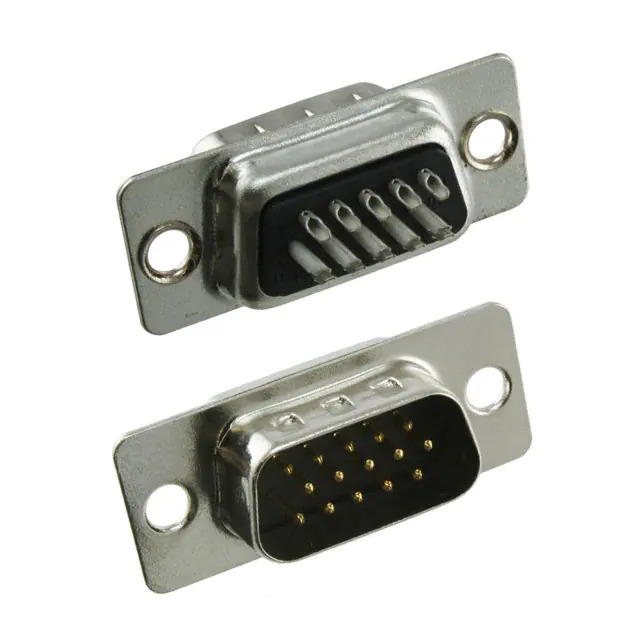

10090769-P154ALF Amphenol
Same model may have multiple batches, images only for reference.

10090769-P154ALF

Part No 10090769-P154ALF
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB HD PLUG 15P SLDR CUP / 15 Position D-Sub, High Density Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Amphenol ICC (FCI)
Series 10090769
Package Tray
Product Status Active
Connector Style D-Sub, High Density
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 3
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2.5A per Contact
Backset Spacing -
Features Grounding Indents
Voltage Rating 250V
Color Black
Contact Form -
Dielectric Material Thermoplastic, Glass Filled
Wire Gauge 24-28 AWG
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 10090769
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365117-10090769-P154ALF
Ultra Librarian 3D Model Ultra Librarian 10090769-P154ALF CAD Model

Description

The Amphenol ICC (FCI) 10090769 D-Sub Connector Assembly is a versatile and reliable connector for D-Sub applications.

  • Features: Grounding Indents
  • Current Rating: 2.5A per contact
  • Termination: Solder Cups
  • Voltage Rating: 250V
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Flammability Rating: UL94 V-0
  • Dielectric Material: Thermoplastic, Glass-Filled
  • Shell Material: Steel
  • Shell Finish: Nickel-Plated
  • Series: 10090769
  • Package: Tray
  • Positions: 15
  • Rows: 3
  • Mounting: Free-Hanging (In-Line)
  • Operating Temperature: -55°C to 105°C
