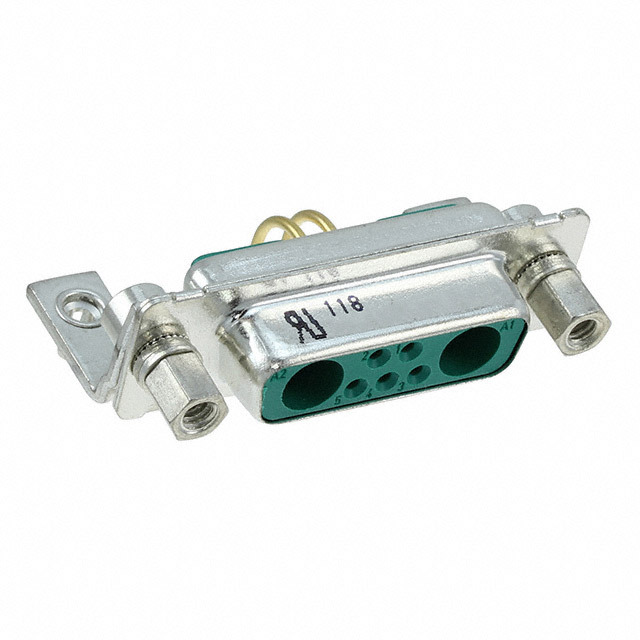

10070158-00419XLF Amphenol – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

10070158-00419XLF

Part No 10070158-00419XLF
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLG 4P R/A SLDR PASTE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Style D-Sub, Combo
Connector Type Plug, Male Pins
Number of Positions 4 (2 + 2 Power)
Number of Rows 1
Mounting Type Board Cutout, Through Hole, Right Angle
Shell Size, Connector Layout 2 (DA, A) - 4W2
Contact Type Signal and Power
Flange Feature Housing/Shell (4-40)
Termination Solder Paste
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Current Rating (Amps) 0.375A, 24A
Backset Spacing 0.201" (5.10mm)
Features Board Guide, Grounding Indents, Mounting Brackets
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1623308-10070158-00419XLF
Ultra Librarian 3D Model Ultra Librarian 10070158-00419XLF CAD Model
