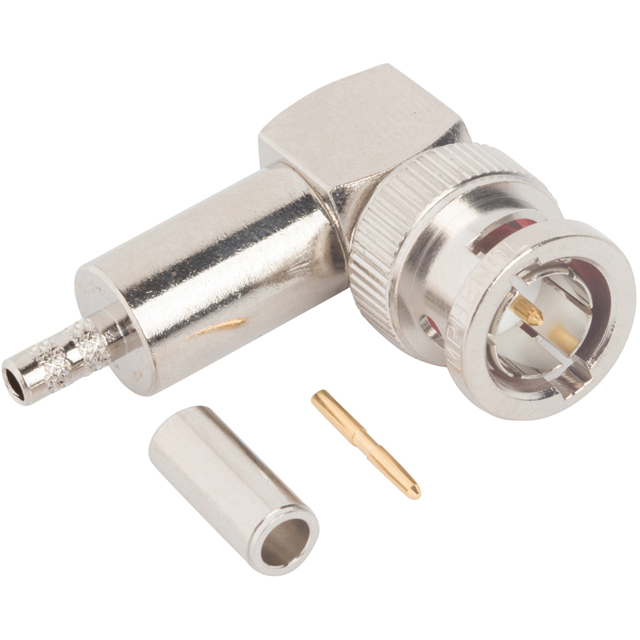

031-70240 Real Image
Same model may have multiple batches, images only for reference.

031-70240

Part No 031-70240
Manufacturer Amphenol
Catalog Coaxial Connectors (RF)
Description CONN BNC PLUG R/A 75 OHM CRIMP / BNC Connector Plug, Male Pin 75Ohm Free Hanging (In-Line), Right Angle Crimp
Datasheet
031-70240 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Amphenol RF
Package Bulk
Connector Style BNC
Connector Type Plug, Male Pin
Contact Termination Crimp
Shield Termination Crimp
Impedance 75Ohm
Mounting Type Free Hanging (In-Line), Right Angle
Cable Group AT&T 735, 735A, Belden 735A1
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass; Phosphor Bronze
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 500 V
Mating Cycles 500
Insertion Loss 0.2dB
Base Product Number 031-70
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Names 31-70240
Standard Package 25
Win Source Part Number 1038246-031-70240
Ultra Librarian 3D Model Ultra Librarian 031-70240 CAD Model

Description

The 1038246-031-70240 is a BNC plug male pin connector from Amphenol RF.

  • Manufacturer: Amphenol RF
  • Maximum Voltage Rating: 500V
  • Operating Temperature: -65°C to 165°C
  • Fastening Type: Bayonet Lock
  • Contact Termination: Crimp
  • Impedance: 75Ohm
  • Maximum Insertion Loss: 0.2dB
  • Package: Bulk (25 units)
  • Applications: RF applications such as video and audio equipment, CCTV, and test and measurement equipment.
