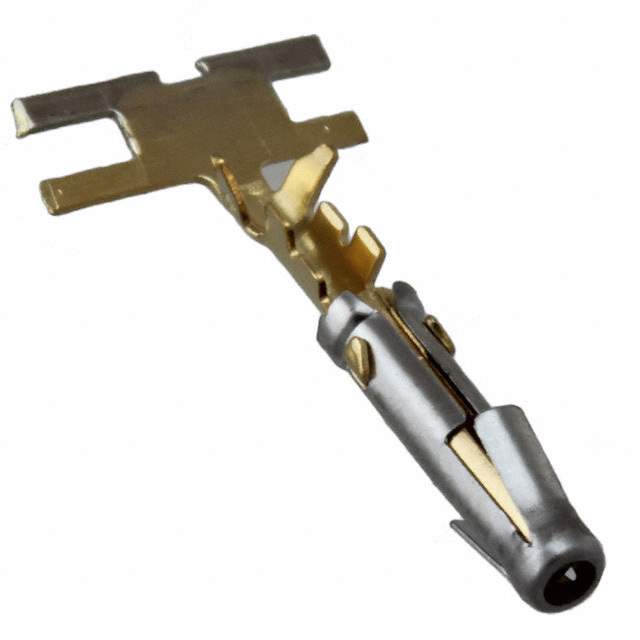

SS20M1F Real Image
Same model may have multiple batches, images only for reference.

SS20M1F

Part No SS20M1F
Manufacturer Amphenol Sine Systems Corp
Catalog Circular Connectors
Description CONTACT SOCKET 20-22AWG CRIMP / Socket Contact 20-22 AWG Size 16 Crimp Gold
Datasheet
SS20M1F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Contacts
Mfr Amphenol Sine Systems Corp
Series ecomate® RM
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Type Signal, Stamped
Contact Type Socket
Contact Size 16
Wire Gauge or Range - AWG 20-22 AWG
Wire Gauge or Range - mm2 0.34 ~ 0.5mm²
Contact Termination Crimp
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness Flash
Termination Finish Copper Alloy
Features Insulation Support
Base Product Number SS20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Names 889-1196-2,889-1196-1
Standard Package 3,000
Win Source Part Number 987463-SS20M1F
Ultra Librarian 3D Model Ultra Librarian SS20M1F CAD Model

Description

The SS20M1F is a circular connector contact with a wire gauge range of 20-22 AWG or 0.34 ~ 0.5mm².

  • Wire Gauge: 20-22 AWG or 0.34 ~ 0.5mm²
  • Insulation Support: Yes
  • Type: Signal, Stamped
  • Contact Finish: Gold with Flash Thickness
  • Contact Termination: Crimp
  • Contact Material: Copper Alloy
  • Termination Finish: Copper Alloy
  • Contact Size: 16
  • Standard Package: 3,000
  • Series: ecomate® RM
  • Status: Obsolete
