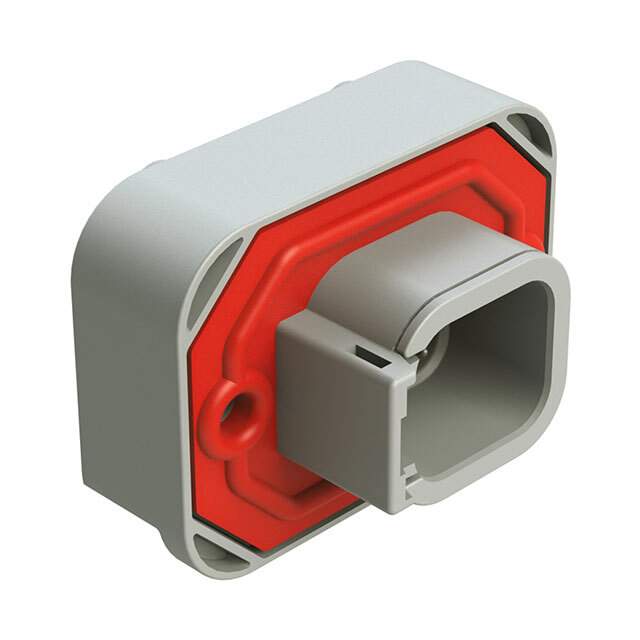

Same model may have multiple batches, images only for reference.

ATM15-6P-BM03

Name: ATM15-6P-BM03
Brand: Amphenol Sine Systems Corp
SKU: 1168042
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ATM15-6P-BM03
Manufacturer	Amphenol Sine Systems Corp
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS / Connector Header Through Hole 6 position
Datasheet	ATM15-6P-BM03 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol Sine Systems Corp
Series	BoardLock™ ATM
Package	Tray
Connector Type	Receptacle
Contact Type	Male Pin
Number of Positions	6
Number of Rows	2
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.120" (3.05mm)
Insulation Height	1.189" (30.20mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Board Guide, Mating Flange, Mounting Flange
Temperature Range - Operating	-55°C ~ 125°C
Ingress Protection	IP67
Insulation Color	Gray
Current Rating (Amps)	7.5A
Voltage Rating	250V
Applications	Automotive, Industrial
Base Product Number	ATM15
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4030
Other Names	889-3261
Standard Package	225
Win Source Part Number	1168042-ATM15-6P-BM03
Ultra Librarian 3D Model	Ultra Librarian ATM15-6P-BM03 CAD Model

Alternative Products

Description

The Amphenol BoardLock™ ATM series is a male pin connector with 6 positions and a board guide, mating flange, and mounting flange features.

Series: BoardLock™ ATM
Type: Male Pin
Positions: 6
Features: Board Guide, Mating Flange, Mounting Flange
Connector Type: Receptacle
Termination Type: Solder
Contact Material: Copper Alloy
Voltage Rating: 250V
IP Rating: IP67
Temperature Range: -55°C to 125°C
Current Rating: 7.5A
Package: Tray
Standard Package: 225
