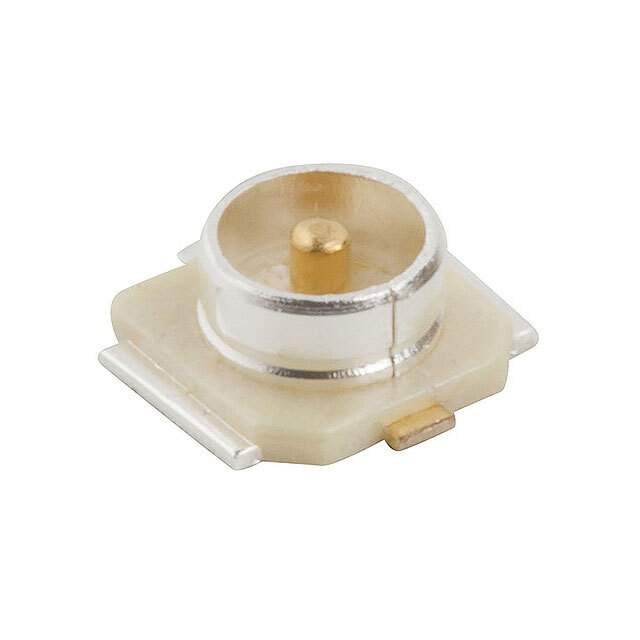

A-1JB Real Image
Same model may have multiple batches, images only for reference.

A-1JB

Part No A-1JB
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN UMC JACK STR 50 OHM SMD / AMC PCB JACK SURFACE MOUNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol RF
Packaging Reel
Connector Style U.FL (UMCC), AMC
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Style SMD
Fastening Type Snap-On
Frequency - Max 6GHz
Number of Ports 1
Housing Color White
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 90°C
Center Contact Material Brass
Voltage Rating 500V
Mating Cycles 30
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805940-A-1JB
Ultra Librarian 3D Model Ultra Librarian A-1JB CAD Model

Description

The Amphenol RF 805940-A-1JB is a U.FL (UMCC)/AMC jack-to-male pin connector.

  • Fastening Type: Snap-On
  • Termination: Solder
  • Impedance: 50Ohm
  • Maximum Input Frequency: 6GHz
  • Compliance: RoHS
  • Temperature Range: -40°C to 90°C
  • Manufacturer Pack Quantity: 2,500
