Same model may have multiple batches, images only for reference.

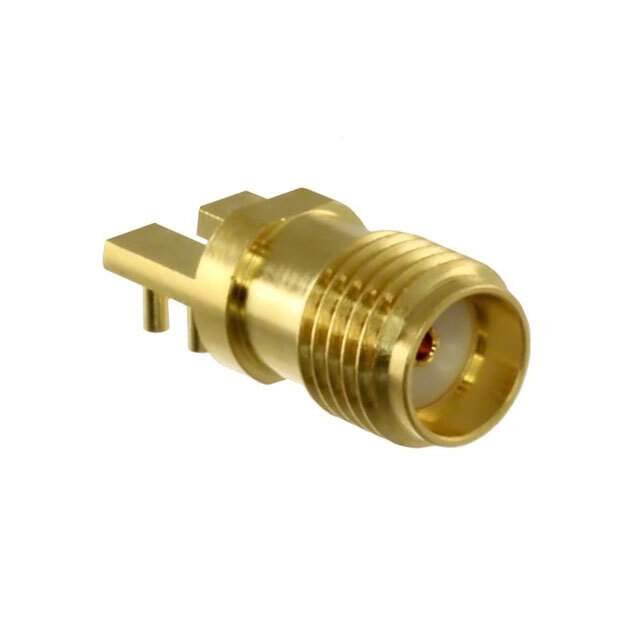

901-10510-2 Real Image
Same model may have multiple batches, images only for reference.

901-10510-2

Part No 901-10510-2
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA JACK R/A 50OHM EDGE MNT / SMA Connector Jack, Female Socket 50Ohm Board Edge, End Launch; Through Hole, Right Angle Solder
Datasheet
901-10510-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Series -
Package Bulk
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Board Edge, End Launch; Through Hole, Right Angle
Mounting Feature -
Cable Group -
Fastening Type Threaded
Frequency - Max 26.5 GHz
Number of Ports 1
Features -
Housing Color -
Ingress Protection -
Center Contact Material -
Includes -
Body Material -
Body Finish -
Center Contact Plating -
Dielectric Material -
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 170 V
Mating Cycles 500
Insertion Loss -
Base Product Number 901-10
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Standard Package 50 pcs
Win Source Part Number 1381447-901-10510-2
Ultra Librarian 3D Model Ultra Librarian 901-10510-2 CAD Model

Description

The 901-10510-2 is a coaxial connector assembly from Amphenol-RF Division.

  • Connector Type: Jack, Female Socket
  • Fastening Type: Threaded
  • Series: SMA
  • Voltage - Rated: 170V
  • Frequency - Max: 26.5GHz
  • Impedance: 50Ohm
  • Number of Ports: 1
  • Mounting Type: Board Edge, End Launch
  • Operating Temperature: -65°C ~ 165°C
