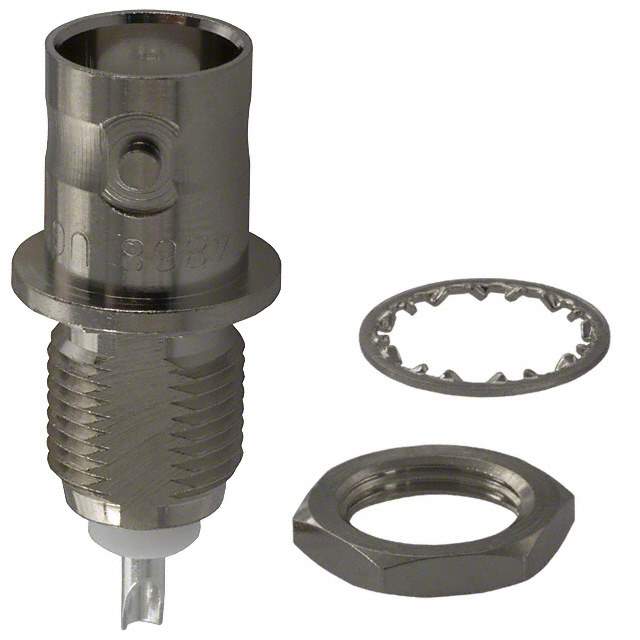

Same model may have multiple batches, images only for reference.

31-2221

Name: 31-2221
Brand: Amphenol-RF Division
SKU: 793118
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	31-2221
Manufacturer	Amphenol-RF Division
Catalog	Coaxial Connectors (RF)
Description	CONN BNC RCPT STR 50 OHM SOLDER
Datasheet	31-2221 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol RF Division
Packaging	Bulk
Connector Style	BNC
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Shield Termination	Solder
Impedance	50 Ohm
Mounting	Panel Mount
Mounting Feature	Bulkhead - Rear Side Nut
Fastening Type	Bayonet Lock
Frequency - Max	4GHz
Features	Extended Insulation
Housing Color	Silver
Includes	3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material	Brass
Body Finish	Nickel
Center Contact Plating	Silver
Dielectric Material	Polytetrafluoroethylene (PTFE)
Operating Temperature Range	-65°C ~ 165°C
Center Contact Material	Phosphor Bronze
Voltage Rating	500V
Mating Cycles	500
Insertion Loss	0.2dB
Win Source Part Number	793118-31-2221
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 31-2221 CAD Model

Alternative Products

Description

The Amphenol RF Division 793118-31-2221 is a BNC receptacle from Amphenol RF Division.

Type: Receptacle, female socket
Fastening Type: Bayonet Lock
Impedance: 50 Ohm
Frequency Range: Up to 4GHz
Body Material: Brass
Body Finish: Nickel
Center Contact Material: Phosphor Bronze
Center Contact Plating: Silver
Housing Color: Silver
Pieces: 3 (1 connector, 1 lockwasher, 1 nut)
Applications: Telecommunications, Test and Measurement, Military
