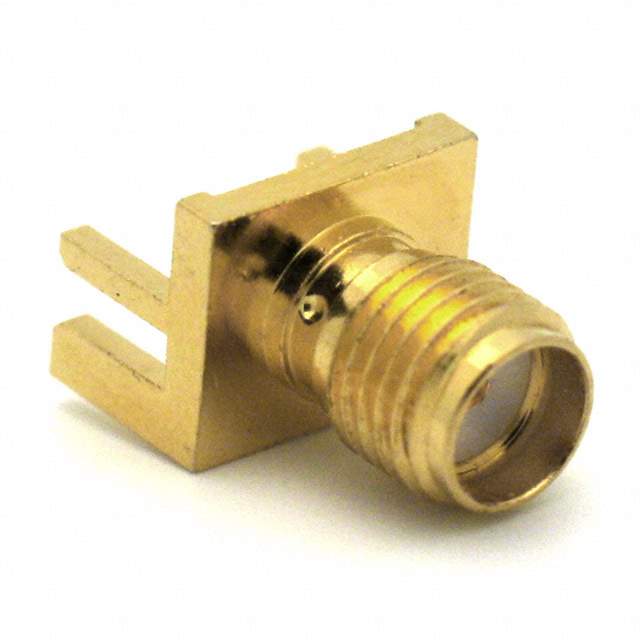

132255 Real Image
Same model may have multiple batches, images only for reference.

132255

Part No 132255
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA RCPT STR 50OHM EDGE MNT / SMA Connector Receptacle, Female Socket 50Ohm Board Edge, End Launch Solder
Datasheet
132255 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Bag
Product Status Active
Connector Style SMA
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Board Edge, End Launch
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Base Product Number 1322
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 905274-132255
Ultra Librarian 3D Model Ultra Librarian 132255 CAD Model

Description

The SMA Coaxial Connector is a high-quality connector designed for use in RF applications.

  • Connector Type: Receptacle, Female Socket
  • Fastening Type: Threaded
  • Material: Brass
  • Finish: Gold
  • Impedance: 50 Ohm
  • Maximum Frequency: 18 GHz
  • Manufacturer: Amphenol-RF Division
