112604RP
Same model may have multiple batches, images only for reference.

112604RP

Part No 112604RP
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN RP-BNC JACK STR 50OHM CRIMP
Datasheet
112604RP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Bulk
Product Status Active
Connector Style RP-BNC
Connector Type Jack, Male Pin
Contact Termination Crimp
Shield Termination Crimp
Impedance 50Ohm
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Cable Group Belden 8214, 9913, 9914, LMR-400
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass

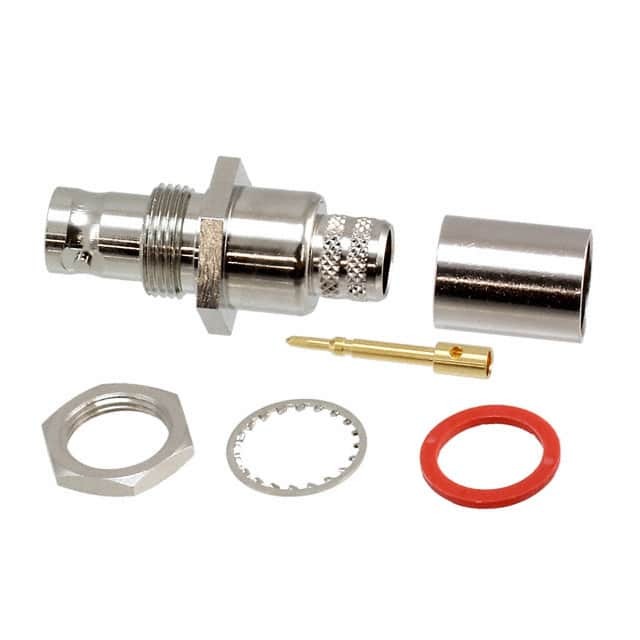

Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 500 V
Mating Cycles 500
Insertion Loss 0.2dB
Base Product Number 112604
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 905138-112604RP
Ultra Librarian 3D Model Ultra Librarian 112604RP CAD Model

Description

The 905138-112604RP is an RP-BNC Coaxial Connector Assembly designed for use in electronic applications that require a reliable and secure connection.

  • Type: RP-BNC Coaxial Connector Assembly
  • Gender: Jack (Male Pin)
  • Fastening Type: Bayonet Lock
  • Material: Brass (Nickel Finish)
  • Center Contact: Brass (Gold Plating)
  • Cable Groups: Belden 8214, 9913, 9914, LMR-400
  • Temperature Range: -65°C to 165°C
  • Compliance: REACH and California Prop 65
