031-71046 Amphenol-RF Division

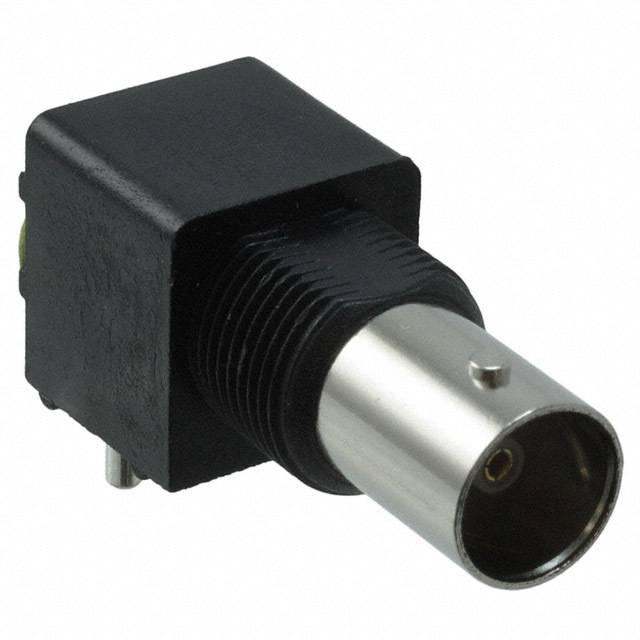

Same model may have multiple batches, images only for reference.

031-71046

Part No 031-71046
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN BNC JACK R/A 75 OHM PCB
Datasheet
031-71046 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Tray
Status Active
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 75 Ohm
Mounting Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Maximum Input Frequency 1GHz
Features Board Guide, Isolated
Housing Color Black, Silver
Body Material Zinc Die Cast
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polypropylene (PP)
Temperature Range - Operating -55°C to 85°C
Center Contact Material Phosphor Bronze
Voltage Rating 500V
Mating Cycles 500
Insertion Loss 0.2dB
Win Source Part Number 1092048-031-71046
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 031-71046 CAD Model

Description

The Amphenol RF Division 031-71046 is a BNC female socket connector that is suitable for use in a variety of electronic devices.

  • Packaging: Tray
  • Housing Color: Black and silver
  • Fastening Type: Bayonet Lock
  • Contact Termination: Solder
  • Mounting Type: Panel Mount, Through Hole, Right Angle
  • Impedance: 75 Ohm
  • Insertion Loss: 0.2dB
  • Maximum Input Frequency: 1GHz
  • Operating Temperature Range: -55°C to 85°C
  • Popularity: Medium
