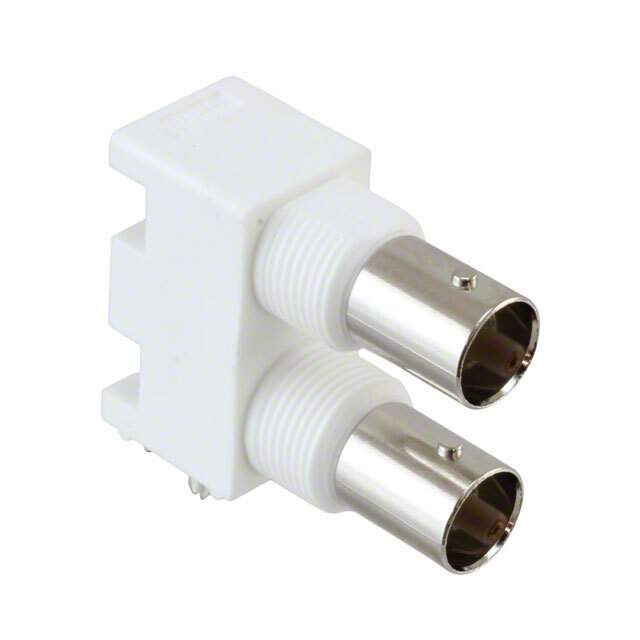

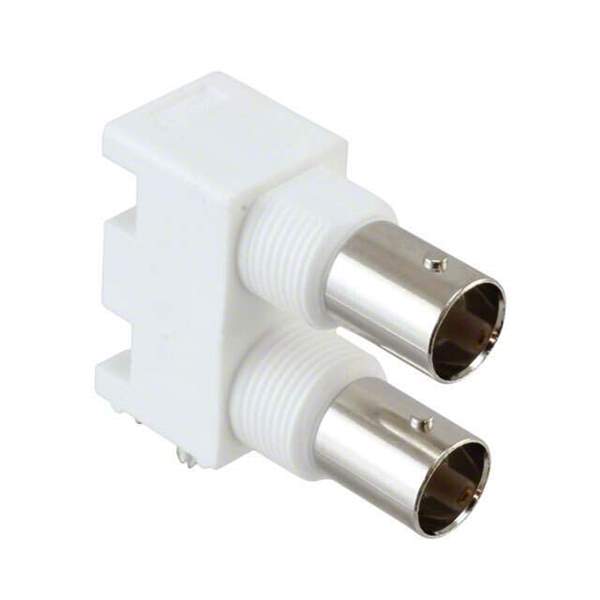

031-70506 Real Image
Same model may have multiple batches, images only for reference.

031-70506

Part No 031-70506
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN BNC JACK R/A 75 OHM PCB / Conn Dual Port BNC 0Hz to 1GHz 75Ohm Solder RA Thru-Hole F/F Gold Over Nickel Tray
Datasheet
031-70506 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Tray
Connector Style BNC
Connector Type Jack, Female Sockets - Dual
Contact Termination Solder
Shield Termination Solder
Impedance 75 Ohm
Mounting Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Frequency - Max 1GHz
Features Board Lock, Isolated
Housing Color Silver, White
Center Contact Plating Gold
Dielectric Material Polypropylene (PP)
Operating Temperature Range -55°C ~ 85°C
Center Contact Material Phosphor Bronze
Voltage Rating 500V
Mating Cycles 500
Insertion Loss 0.2dB
Win Source Part Number 793139-031-70506
Popularity Medium
Supply and Demand Status Limited
Family Name 031-70506
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 031-70506 CAD Model

Description

The 031-70506 is a BNC jack, female sockets-dual connector manufactured by Amphenol RF Division.

  • Win Source Part Number: 793139-031-70506
  • Mounting Type: Panel mount, through hole, and right angle
  • Impedance: 75 Ohm
  • Maximum Frequency: 1GHz
  • Mounting Feature: Bulkhead-front side nut
  • Operating Temperature: -55°C to 85°C
  • Supply and Demand Status: Limited
