Same model may have multiple batches, images only for reference.

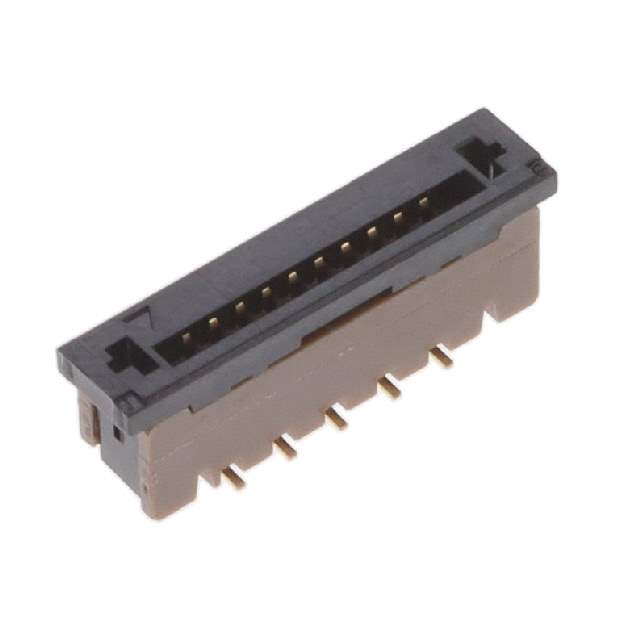

SFW10S-2STAE1LF Real Image
Same model may have multiple batches, images only for reference.

SFW10S-2STAE1LF

Part No SFW10S-2STAE1LF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC VERT 10POS 1.00MM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Packaging Reel
Flat Flex Type FPC
Mounting Style SMD
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 10
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.209" (5.30mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Thermoplastic, Glass Filled
Actuator Material Thermoplastic, Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 100V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Brown
Actuator Color Black
Mating Cycles 20
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807764-SFW10S-2STAE1LF
Ultra Librarian 3D Model Ultra Librarian SFW10S-2STAE1LF CAD Model

Description

The Amphenol ICC (FCI) 807764-SFW10S-2STAE1LF is a zero insertion force (ZIF) FPC connector.

  • Positions: 10
  • Pitch: 0.039 inches
  • Contact Material: Phosphor Bronze with Gold Plating
  • Housing Material: Thermoplastic and Glass-Filled
  • Housing Color: Brown
  • Actuator Material: Thermoplastic and Glass-Filled
  • Actuator Color: Black
  • Height Above Board: 0.209 inches
  • Temperature Range: -55°C to 85°C
  • Popularity: Medium
  • Supply and Demand Status: Balanced
