Same model may have multiple batches, images only for reference.

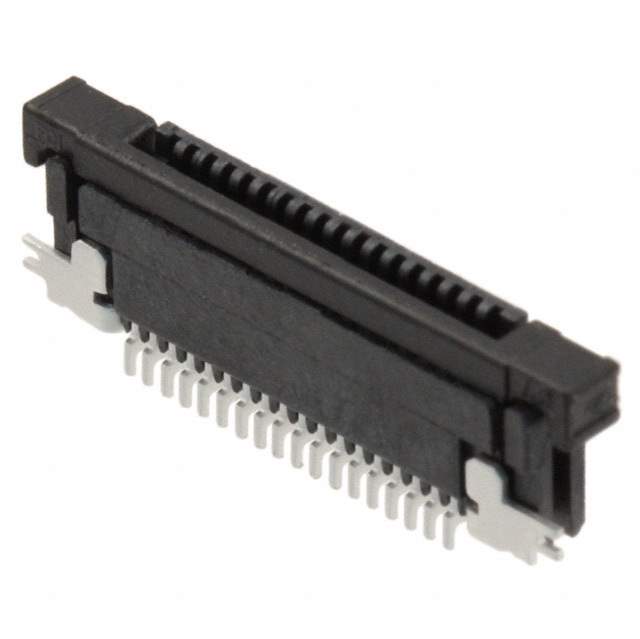

SFV18R-2STE1HLF Real Image
Same model may have multiple batches, images only for reference.

SFV18R-2STE1HLF

Part No SFV18R-2STE1HLF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC TOP 18POS 0.50MM R/A
Datasheet
SFV18R-2STE1HLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 18
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm, 0.33mm
Height Above Board 0.071" (1.80mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C to 105°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Black
Actuator Color Black
Mating Cycles 20
Win Source Part Number 134716-SFV18R-2STE1HLF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SFV18R-2STE1HLF CAD Model

Description

The Amphenol FCI SFV18R-2STE1HLF is an electronic component manufactured by Amphenol FCI.

  • Packaging: Reel - TR
  • Positions: 18
  • Pitch: 0.020" (0.50mm)
  • Features: Solder Retention, Zero Insertion Force (ZIF)
  • Mounting: Surface Mount, Right Angle
  • Supply and Demand Status: Limited
  • Manufacturer: Amphenol FCI
