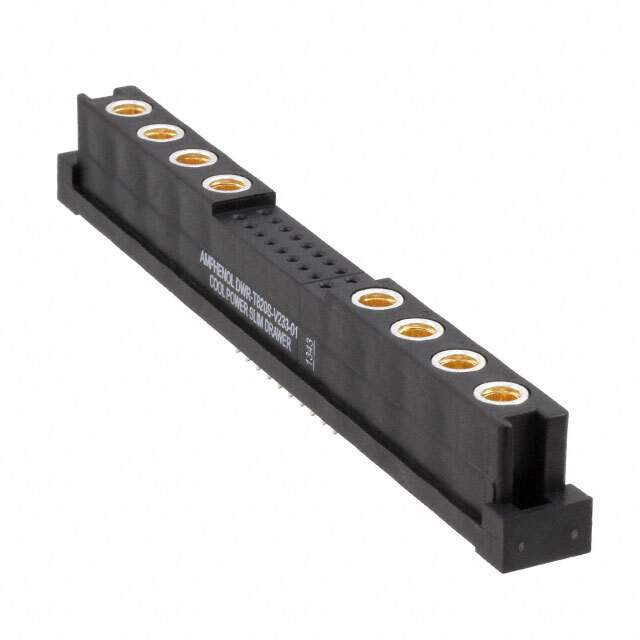

DWR-T820S-V233-01 Real Image
Same model may have multiple batches, images only for reference.

DWR-T820S-V233-01

Part No DWR-T820S-V233-01
Manufacturer Amphenol FCI
Catalog OEM Parts (C - E)
Description Conn Drawer Connector RCP 8Power/20Signal POS Solder ST Thru-Hole 28 Terminal 1 Port
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Receptacle
Contact Gender Female
Contact Material Bronze, Copper
Contact Plating Gold
Current Rating 5 A
Gender Receptacle
Housing Material Thermoplastic
Maximum Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Through Hole
Number of Contacts 28
Number of Positions 28
Number of Rows 2
Pitch 2.7432 mm
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Win Source Part Number 1000573-DWR-T820S-V233-01
Categories OEM Parts(C-E)
Manufacturer Amphenol FCI
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian DWR-T820S-V233-01 CAD Model

Description

The 1000573-DWR-T820S-V233-01 from Amphenol FCI is a 28-position receptacle connector with a pitch of 2.7432 mm and two rows.

  • Number of Positions: 28
  • Pitch: 2.7432 mm
  • Number of Rows: 2
  • Material: Thermoplastic
  • Current Rating: 5 A
  • Contact Material: Bronze and Copper
  • Contact Plating: Gold
  • Mounting: Through-Hole
  • Operating Temperature (Max): 105 °C
  • RoHS Compliance: Yes
  • Category: OEM Parts(C-E)
  • Popularity: Low
