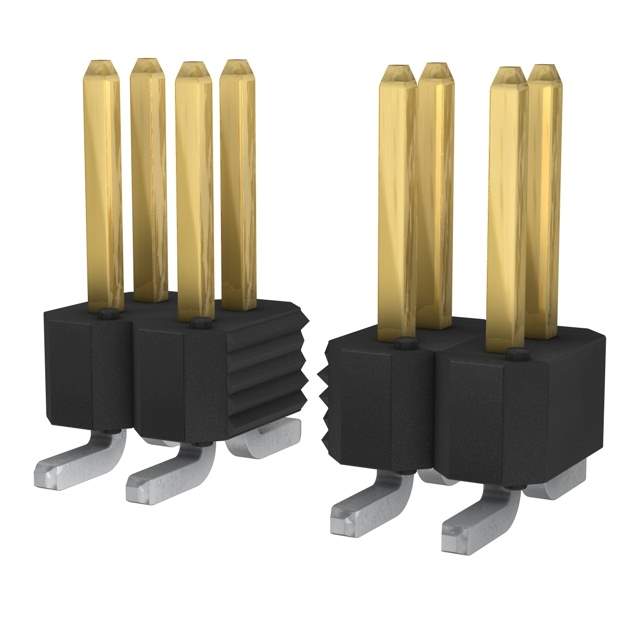

Same model may have multiple batches, images only for reference.

95278-101A10LF

Name: 95278-101A10LF
Brand: Amphenol FCI
SKU: 766523
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	95278-101A10LF
Manufacturer	Amphenol FCI
Catalog	Rectangular Connectors
Description	BERGSTIK HDR 10POS .100" DR SMT
Datasheet	95278-101A10LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol FCI
Series	BERGSTIK
Packaging	Reel package
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.232" (5.90mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold, GXT
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic
Features	Pick and Place
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	78.7μin (2.00μm)
Win Source Part Number	766523-95278-101A10LF
Popularity	Medium
Supply and Demand Status	Limited
Family Name	95278
Introduction Date	December 15, 2004
ECCN	EAR99
Country of Origin	France
Halogen Free	Not Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian 95278-101A10LF CAD Model

Alternative Products

Description

The Amphenol FCI header connector is a high-quality electronic component designed for use in various applications.

Series: BERGSTIK
Package: Reel
Technology: Pick and Place
Positions: 10
Contact Type: Male Pin
Loaded Positions: All
Family Name: 95278
Flammability Rating: UL94 V-0
EOL Date: 2026
Introduction Date: December 15, 2004
Country of Origin: France
