Same model may have multiple batches, images only for reference.

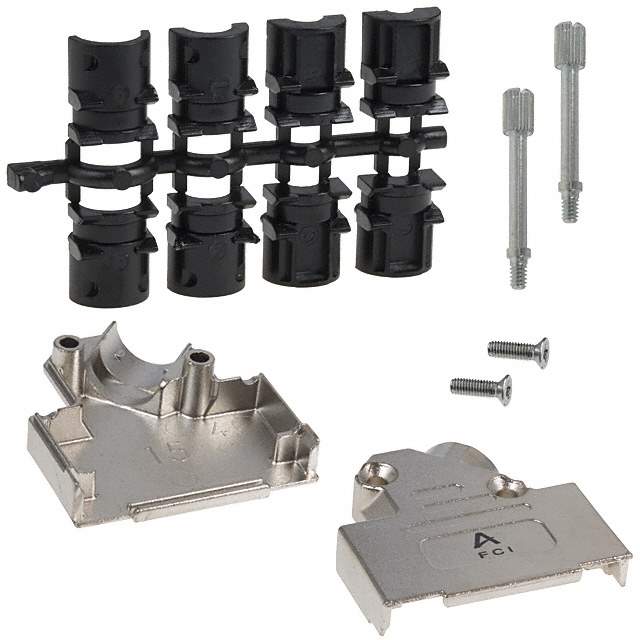

8655MHRA1501LF Real Image
Same model may have multiple batches, images only for reference.

8655MHRA1501LF

Part No 8655MHRA1501LF
Manufacturer Amphenol FCI
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description BACKSHELL DB15 45DEG METAL SHLD
Datasheet
8655MHRA1501LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Accessory Type Two Piece Backshell
Number of Positions 15
Cable Type Round
Cable Exit 45°
Shielding Shielded
Material Metal, Zamak
Plating Nickel
Hardware Assembly Hardware, Strain Relief
Features Mating Screws 4-40
Color Silver
Win Source Part Number 766356-8655MHRA1501LF
Popularity Medium
Supply and Demand Status Limited
Family Name 8655MHRA
Introduction Date August 10, 2004
ECCN EAR99
Country of Origin Denmark
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 8655MHRA1501LF CAD Model

Description

The Amphenol FCI 766356-8655MHRA1501LF is a two-piece backshell accessory type connector that has a family name of 8655MHRA and is shielded.

  • Win Source Part Number: 766356
  • Material: Metal, Zamak
  • Plating: Nickel
  • Positions: 15
  • Mating Screws: 4-40
  • Cable Type: Round
  • Cable Exit: 45-degree
  • Introduction Date: August 10, 2004
  • Estimated EOL Date: 2025
  • Supply and Demand Status: Limited
