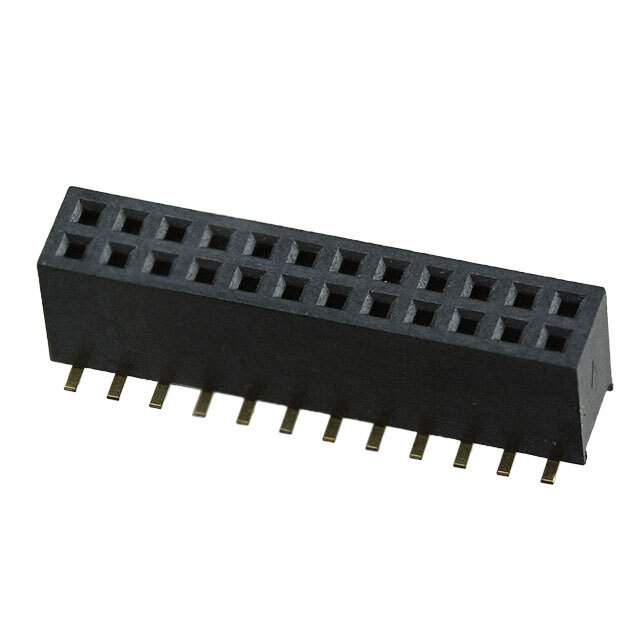

20021321-00024T4LF Real Image
Same model may have multiple batches, images only for reference.

20021321-00024T4LF

Part No 20021321-00024T4LF
Manufacturer Amphenol FCI
Catalog OEM Parts (0 - 9)
Description Connector Shrouded Header 24 Position 1.27mm Solder Straight SMD Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Receptacle, Socket
Contact Plating Gold
Contact Resistance 30 mΩ
Depth 3 mm
Gender Female
Housing Color Black
Housing Material Thermoplastic
Length 15.7 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 125 V
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Contacts 24
Number of Positions 24
Number of Rows 2
Orientation Straight
Pitch 1.27 mm
RoHS Compliant
Row Spacing 1.27 mm
Schedule B 8536694040, 8536694040
Termination Solder
Win Source Part Number 1023509-20021321-00024T4LF
Categories OEM Parts(0-9)
Manufacturer Amphenol FCI
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 20021321-00024T4LF CAD Model

Description

The 1023509-20021321-00024T4LF is a 24-position female receptacle socket connector from Amphenol FCI.

  • Positions: 24
  • Pitch: 1.27mm
  • Row Spacing: 1.27mm
  • Contact Plating: Gold
  • Voltage Rating: 125VAC
  • Popularity: Low
  • Category: OEM Parts(0-9)
  • RoHS Compliant: Yes
  • Operating Temperature: -40°C to 85°C
  • Mounting Style: Surface Mount
  • Depth: 3mm
