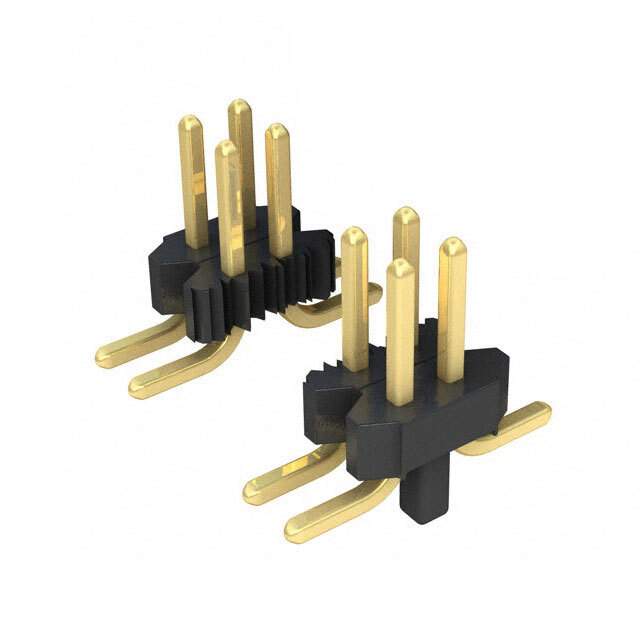

Same model may have multiple batches, images only for reference.

20021121-00074T1LF

Name: 20021121-00074T1LF
Brand: Amphenol FCI
SKU: 761776
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	20021121-00074T1LF
Manufacturer	Amphenol FCI
Catalog	Rectangular Connectors
Description	HD SMT
Datasheet	20021121-00074T1LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol FCI
Series	Minitek 127 20021121
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	74
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	50μin (1.27μm)
Win Source Part Number	761776-20021121-00074T1LF
Popularity	Medium
Supply and Demand Status	Balance
Family Name	20021121
Introduction Date	September 14, 2009
ECCN	EAR99
Country of Origin	China
Halogen Free	Not Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian 20021121-00074T1LF CAD Model

Alternative Products

Description

The Amphenol FCI Minitek 127 20021121 series connector is a board-to-board connector with a 74-position header and male pin contacts.

Pitch: 0.050" (1.27mm)
Mounting: SMD
Contact Material: Copper Alloy
Contact Finish: Gold (Flash)
Insulation Material: Thermoplastic
Material Flammability Rating: UL94 V-0
Shrouding: Unshrouded
Rows: Two
Positions Loaded: All
Fastening Type: Push-Pull
Country of Origin: China
EOL Date: 2026
