Same model may have multiple batches, images only for reference.

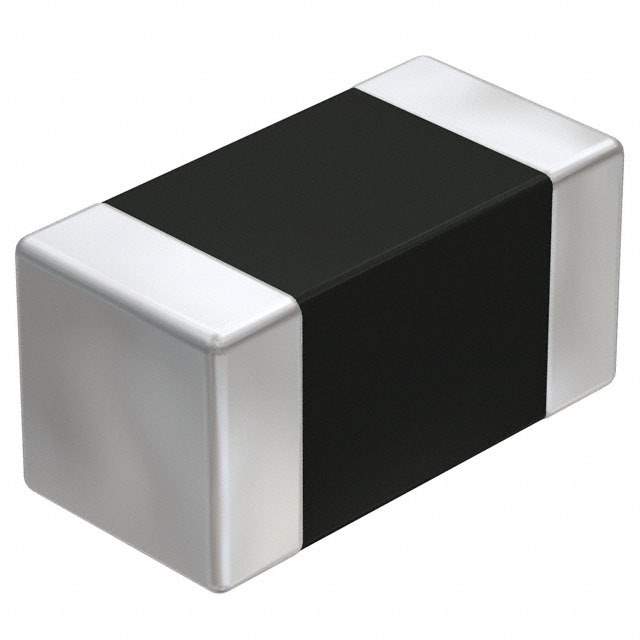

EVK105CH1R3BW-F Real Image
Same model may have multiple batches, images only for reference.

EVK105CH1R3BW-F

Part No EVK105CH1R3BW-F
Manufacturer Taiyo Yuden
Catalog Ceramic Capacitors
Description Capacitor, Ceramic, 1.3pF, 16VDC, .1-pF Tol, .1+pf Tol, CH-TC Code, -60, 60ppm-TC RoHS Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 1.3 pF
Mounting SMD (SMT)
Case / Package 0402
Case Code (Imperial) 0402
Case / Package 1005
Composition Ceramic
Depth 500 µm
Dielectric C0H
Halogen Free Halogen Free
Height 500 µm
Lead Free Yes
Length 1 mm
Maximum Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount Surface Mount
Packaging Tape & Reel (TR)
Radiation Hardening No
RoHS Compliant
Schedule B 8532240020, 8532240020
Termination SMD/SMT
Thickness 508 µm
Voltage Rating 16 V
Voltage Rating (DC) 16 V
Weight 652.039032 µg
Width 500 µm
Win Source Part Number 965976-EVK105CH1R3BW-F
Categories Ceramic Capacitors
Manufacturer Taiyo Yuden
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian EVK105CH1R3BW-F CAD Model

Description

The Taiyo Yuden 965976-EVK105CH1R3BW-F is a ceramic capacitor with a capacitance of 1.3 pF and a voltage rating of 16 V.

  • Capacitance: 1.3 pF
  • Voltage Rating: 16 V
  • Packaging: Tape and Reel
  • Termination: SMD/SMT
  • Length: 1 mm
  • Height: 500 μm
  • Width: 500 μm
  • Halogen-Free: Yes
  • RoHS Compliant: Yes
  • Manufacturer: Taiyo Yuden
  • Win Source Part Number: 965976-EVK105CH1R3BW-F
  • Case/Package Code: 1005 and 0402
  • Maximum Operating Temperature: 125 °C
  • Minimum Operating Temperature: -55 °C
  • Mounting: Surface Mount
