Same model may have multiple batches, images only for reference.

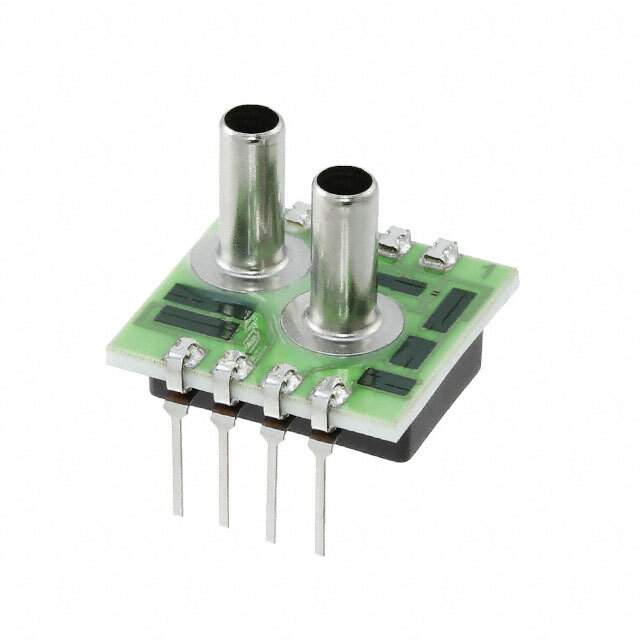

NPP-301B-700AT Real Image
Same model may have multiple batches, images only for reference.

NPP-301B-700AT

Part No NPP-301B-700AT
Manufacturer Amphenol Advanced Sensors
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 100PSIA SO8 SMD
Datasheet
NPP-301B-700AT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Categories Sensors, Transducers
Manufacturer Amphenol Advanced Sensors
Status Active
Pressure Type Absolute
Operating Pressure 100 PSI (689.48 kPa)
Output Type Wheatstone Bridge
Output 0 mV to 60 mV (3V)
Accuracy ±0.2%
Supply Voltage - Operating 3 V to 10 V
Port Size Male - 0.08" (2.04mm) Tube, Dual
Port Style Barbless
Termination Style Surface Mount
Maximum Pressure 300 PSI (2068.43 kPa)
Temperature Range - Operating -40°C to 125°C
Win Source Part Number 1083385-NPP-301B-700AT
Family Name NPP-301-200A
Introduction Date December 19, 2013
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian NPP-301B-700AT CAD Model

Description

The Amphenol Advanced Sensors NPP-301B-700AT is a pressure sensor that operates in a temperature range of -40°C to 125°C.

  • Port Size: 0.08" (2.04mm) Tube
  • Port Style: Dual, Barbless
  • Output Type: Wheatstone Bridge
  • Output: 0mV to 60mV (3V)
  • Status: Active
  • Popularity: High
  • EOL Date: 2025
  • Pressure Type: Absolute
  • Operating Pressure: 100 PSI (689.48 kPa)
  • Maximum Pressure: 300 PSI (2068.43 kPa)
  • Accuracy: ±0.2%
