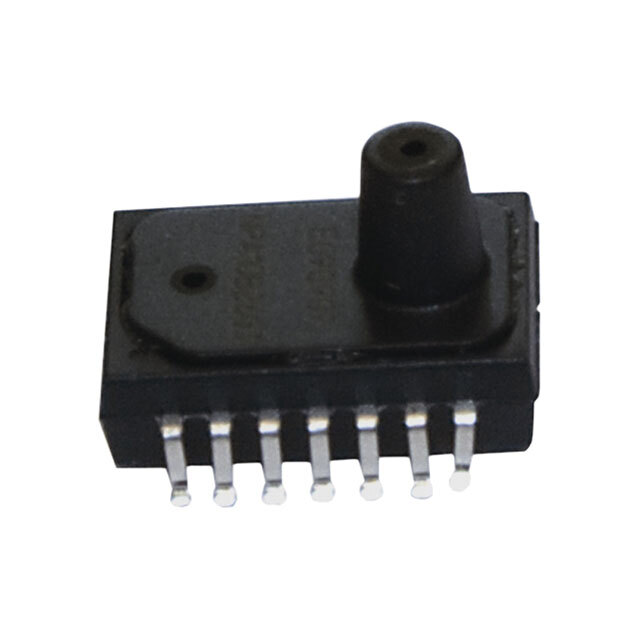

NPA-100B-005D Amphenol Advanced Sensors – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

NPA-100B-005D

Part No NPA-100B-005D
Manufacturer Amphenol Advanced Sensors
Catalog Pressure Sensors, Transducers
Description SENSOR 5PSID 0.12\
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Applications Board Mount
Pressure Type Differential
Operating Pressure 5PSI (34.47kPa)
Output Type Analog Voltage
Output 100 mV ~ 166 mV
Accuracy ±1.5%
Port Size Male - 0.12" (3mm) Tube, Dual
Port Style Barbed
Termination Style Gull Wing
Maximum Pressure 60PSI (413.69kPa)
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Case / Package 14-SOIC Module, Top Port
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1600217-NPA-100B-005D
Ultra Librarian 3D Model Ultra Librarian NPA-100B-005D CAD Model

Description

N
