Same model may have multiple batches, images only for reference.

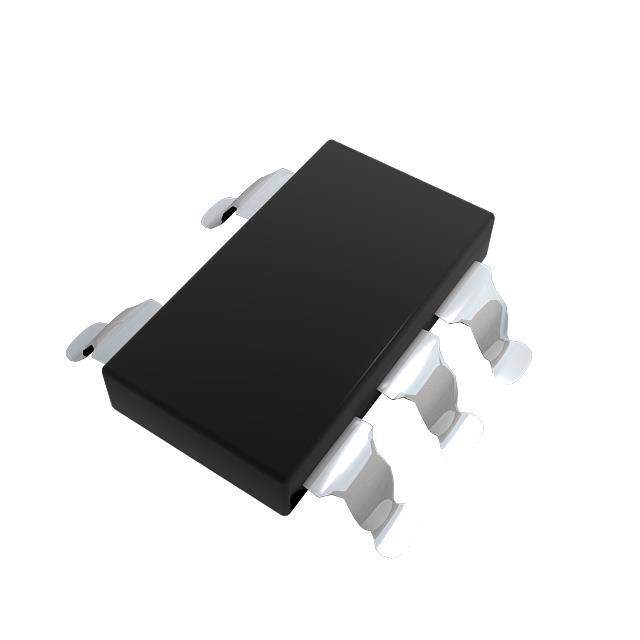

AZ2115-04C Real Image
Same model may have multiple batches, images only for reference.

AZ2115-04C

Part No AZ2115-04C
Manufacturer Amazing
Catalog TVS - Diodes
Description TVS DEVICE LOW SPEED 4-CH 5V  /  Clamp Ipp Tvs Diode Surface Mount SC70-5L
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Amazing
Package Cut Tape (CT)
Type Zener
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Power Line Protection No
Applications General
Temperature Range - Operating -55°C ~ 85°C (TC)
Mounting SMD (SMT)
Package / Case 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package SC70-5L
REACH Status Vendor Undefined
Other Names 4430-AZ2115-04CTR,4430-AZ2115-04CCT,4430-AZ2115-04CTR-ND
Win Source Part Number 1126581-AZ2115-04C
Ultra Librarian 3D Model Ultra Librarian AZ2115-04C CAD Model

Description

The 1126581-AZ2115-04C is an electronic component manufactured by Amazing.

  • Product: Circuit Protection TVS-Diode
  • Popularity: Low
  • Supply and Demand Status: Limited
  • Packaging: Cut Tape
  • Mounting: SMD (SMT)
  • Channels: 4 Unidirectional
  • Voltage - Reverse Standoff (Typ): 5V (Max)
  • Voltage - Breakdown (Min): 6V
