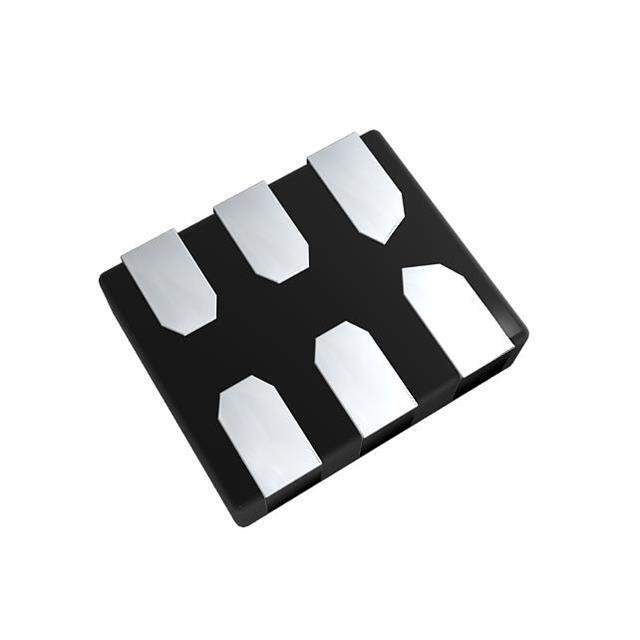

AZ1045-02F Real Image
Same model may have multiple batches, images only for reference.

AZ1045-02F

Part No AZ1045-02F
Manufacturer Amazing
Catalog TVS - Diodes
Description LOW CAP ESD HIGH SPEED 2-CH 5V  /  12V (Typ) Clamp Ipp Tvs Diode Surface Mount DFN1210P6X
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Amazing
Package Cut Tape (CT)
Type Zener
Unidirectional Channels 2
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 12V (Typ)
Power Line Protection No
Applications USB
Temperature Range - Operating -55°C ~ 85°C (TC)
Mounting SMD (SMT)
Package / Case 6-XFDFN
Supplier Device Package DFN1210P6X
REACH Status Vendor Undefined
Other Names 4430-AZ1045-02FTR-ND,4430-AZ1045-02FTR,4430-AZ1045-02FCT
Win Source Part Number 1213897-AZ1045-02F
Ultra Librarian 3D Model Ultra Librarian AZ1045-02F CAD Model

Description

The 1213897-AZ1045-02F electronic component is a Zener type TVS-Diode manufactured by Amazing.

  • Type: TVS-Diode
  • Application: USB
  • Package/Case: 6-XFDFN
  • Voltage Reverse Standoff: 5V (max)
  • Voltage Breakdown: 6V
  • Voltage Clamping Maximum @ Ipp: 12V (typ)
  • Power Peak Pulse: None
  • Power Line Protection: No
  • Capacitance @ Frequency: Not Specified
  • Current Peak Pulse (10/1000µs): Not Specified
  • Supplier Device Package: DFN1210P6X
