Same model may have multiple batches, images only for reference.

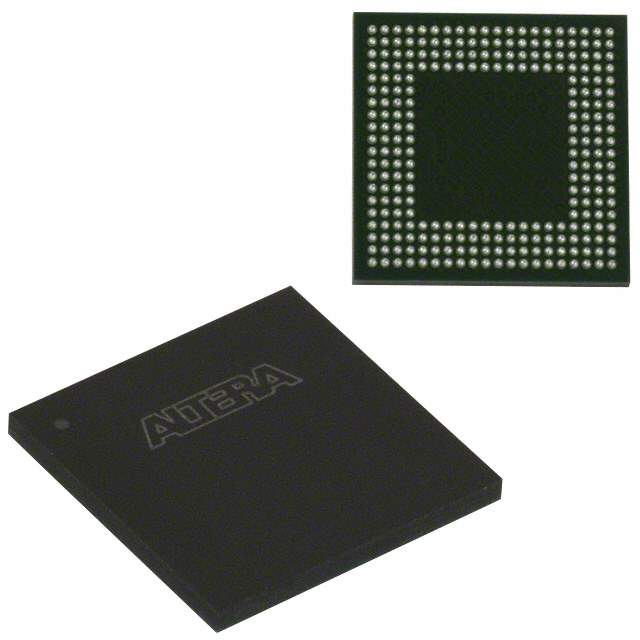

EPM7512AEBC256-10 Real Image
Same model may have multiple batches, images only for reference.

EPM7512AEBC256-10

Part No EPM7512AEBC256-10
Manufacturer Altera
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 512MC 10NS 256BGA / CPLD MAX® 7000A Family 10K Gates 512 Macro Cells 87MHz 3.3V 256-Pin BGA Tray
Datasheet
EPM7512AEBC256-10 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series MAX 7000A
Packaging Tray
Part Status Obsolete(EOL)
Programmable Type In System Programmable
Delay Time tpd(1) Max 10.0ns
Voltage Supply - Internal 3 V ~ 3.6 V
Number of Logic Elements/Blocks 32
Number of Macrocells 512
Number of Gates 10000
Number of I/O 212
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 256-LBGA
Manufacturer Package 256-BGA (27x27)
Win Source Part Number 774210-EPM7512AEBC256-10
Popularity Medium
Supply and Demand Status Limited
Family Name EPM7512AE
Introduction Date October 08, 1998
ECCN 3A991
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPM7512AEBC256-10 CAD Model

Description

The Altera EPM7512AEBC256-10 is an obsolete (EOL) integrated circuit (IC) with in-system programmable technology.

  • Gates: 10000
  • Macrocells: 512
  • I/Os: 212
  • Internal Voltage Supply: 3 V to 3.6 V
  • Delay Time: 10.0 ns
  • Package: 256-LBGA
  • Mounting: Surface-mount technology (SMD)
  • Series: MAX 7000A
  • Family Name: EPM7512AE
  • Estimated EOL Date: Obsolete
  • Supply and Demand Status: Limited
  • Alternative Parts: CY39030Z256-83BBI, M4A3-512/128-10SAC, CY39030V256-222BBXC, M4A3-512/128-10SAI
  • Country of Origin: Unknown
