Same model may have multiple batches, images only for reference.

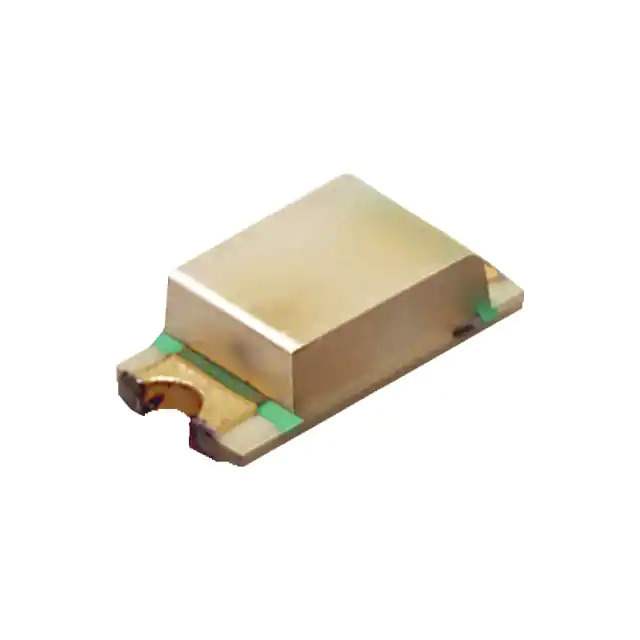

SML-D13Y2WT86 Real Image
Same model may have multiple batches, images only for reference.

SML-D13Y2WT86

Part No SML-D13Y2WT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description MINI-MOLD CHIP LED: ROHM'S CHIP
Datasheet
SML-D13Y2WT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Rohm Semiconductor
Series SML-D13x
Package Tape & Reel
Product Status Active
Color Yellow
Millicandela Rating 80mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Mounting Type Surface Mount
Wavelength - Dominant 581nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 1.60mm L x 0.80mm W
Height (Max) 0.65mm
Base Product Number SML-D13
Standard Package 3,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 749349-SML-D13Y2WT86
Ultra Librarian 3D Model Ultra Librarian SML-D13Y2WT86 CAD Model

Description

The SML-D13x is a yellow LED indication discrete component from Rohm Semiconductor.

  • Package: surface mount
  • Dimensions: 1.60mm length and 0.80mm width
  • Packaging: tape and reel, containing 3,000 pieces
  • Millicandela Rating: 80mcd
  • Forward Voltage: 2.1V @ 20mA
  • Dominant Wavelength: 581nm
  • Maximum Height: 0.65mm
  • Lens Style: rectangle with a flat top
  • Lens Size: 1.20mm x 0.80mm
  • Series: SML-D13x series
  • Status: active
