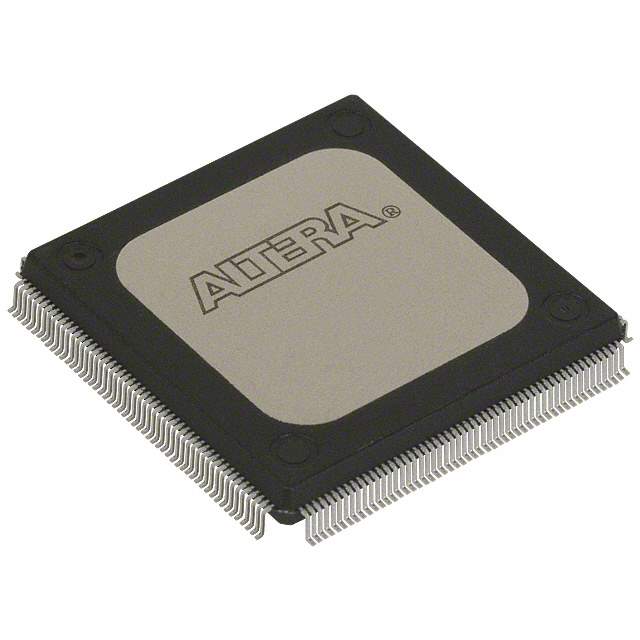

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series MAX 7000S
Packaging Tray
Part Status Obsolete(EOL)
Programmable Type In System Programmable
Delay Time tpd(1) Max 15.0ns
Voltage Supply - Internal 4.75 V ~ 5.25 V
Number of Logic Elements/Blocks 16
Number of Macrocells 256
Number of Gates 5000
Number of I/O 164
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 208-BFQFP Exposed Pad
Manufacturer Package 208-RQFP (28x28)
Win Source Part Number 774209-EPM7256SRC208-15N
Popularity Medium
Supply and Demand Status Limited
Quantity per package 24
Family Name EPM7256
Introduction Date October 02, 1998
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPM7256SRC208-15N CAD Model

Description

The Altera EPM7256SRC208-15N is a member of the MAX 7000S series of field-programmable gate arrays (FPGAs).

  • Gates: 5000
  • I/O: 164
  • Logic Elements/Blocks: 16
  • Macrocells: 256
  • Operating Temperature: 0°C to 70°C
  • Package: 208-BFQFP with an exposed pad
  • Mounting: Surface-mount technology
  • Operating Supply Voltage: 4.75 V to 5.25 V
