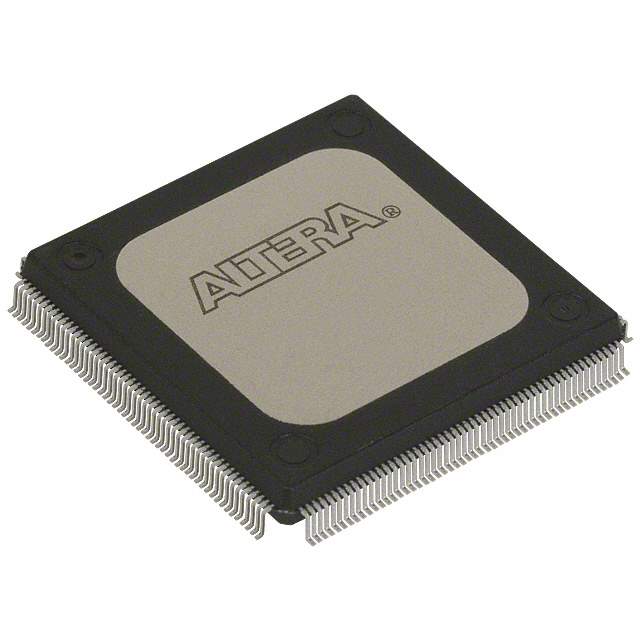

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series MAX 7000S
Packaging Tray
Part Status Obsolete(EOL)
Programmable Type In System Programmable
Delay Time tpd(1) Max 10.0ns
Voltage Supply - Internal 4.75 V ~ 5.25 V
Number of Logic Elements/Blocks 16
Number of Macrocells 256
Number of Gates 5000
Number of I/O 164
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 208-BFQFP Exposed Pad
Manufacturer Package 208-RQFP (28x28)
Win Source Part Number 774207-EPM7256SRC208-10N
Popularity Medium
Supply and Demand Status Limited
Quantity per package 24
Family Name EPM7256S
Introduction Date October 02, 1998
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPM7256SRC208-10N CAD Model

Description

The Altera MAX 7000S series programmable logic device (PLD) is a versatile and high-performance solution for a wide range of applications.

  • I/O Pins: 164
  • Gates: 5000
  • In-System Programmable: Yes
  • Voltage Supply: 4.75 V to 5.25 V
  • Delay Time: 10.0 ns
  • Logic Blocks: 16
  • Macrocells: 256
  • Package: 208-BFQFP Exposed Pad
  • Mounting: Surface-mount device (SMD)
  • Obsolete (EOL): Yes
  • Supply and Demand Status: Limited
