Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series MAX 7000
Packaging Tray
Part Status Obsolete(EOL)
Programmable Type EE PLD
Delay Time tpd(1) Max 15.0ns
Voltage Supply - Internal 4.5 V ~ 5.5 V
Number of Logic Elements/Blocks 6
Number of Macrocells 96
Number of Gates 1800
Number of I/O 52
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD

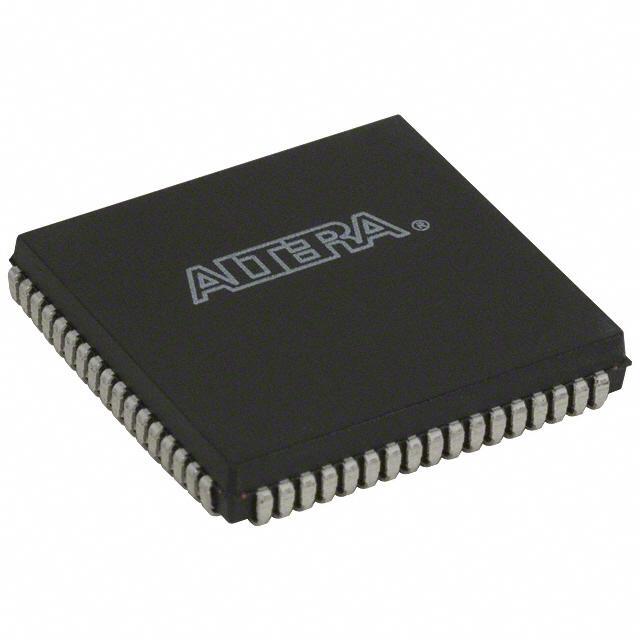

Package 68-LCC (J-Lead)
Manufacturer Package 68-PLCC (24x24)
Win Source Part Number 774163-EPM7096LI68-15
Popularity Medium
Supply and Demand Status Limited
Quantity per package 216
Family Name EPM7096
Introduction Date October 02, 1998
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPM7096LI68-15 CAD Model

Description

The EPM7096LI68-15 is a complex programmable logic device (CPLD) from Altera (now Intel). It belongs to the MAX 7000 family of CPLDs, known for their high performance, ease of use, and cost-effectiveness. This device offers a flexible architecture for implementing a wide range of digital logic functions.

Applications

  • Address decoding
  • Glue logic
  • State machine implementation
  • Peripheral control
  • Interface logic

Features

  • 96 macrocells
  • 68-pin PLCC package
  • In-system programmability (ISP)
  • High speed performance (-15 speed grade)
  • Low power consumption

Benefits

  • Flexible Design: Programmable logic allows for easy customization and modification of digital circuits.
  • Compact Solution: CPLDs integrate multiple logic functions into a single chip, reducing board space.
  • Easy Programming: In-system programmability allows for on-the-fly updates and modifications.
  • High Performance: The -15 speed grade offers fast propagation delays for high-speed applications.
  • Reduced Power Consumption: Low power operation is suitable for battery-powered and energy-sensitive applications.

Additional Details

The EPM7096LI68-15 consists of 96 macrocells arranged in logic array blocks (LABs). The ‘LI’ in the part number signifies low voltage operation, and the ‘68’ denotes the number of pins in the PLCC (Plastic Leaded Chip Carrier) package. The ‘-15’ indicates a speed grade, with lower numbers representing faster performance. These CPLDs are typically programmed using Altera's Quartus II software. CPLDs are often used in prototyping and low-volume production runs due to their flexibility and quick turnaround time.

Consult the official Intel (formerly Altera) datasheet for the EPM7096LI68-15 for detailed specifications, timing diagrams, and programming information. The datasheet is essential for understanding the device's capabilities and ensuring proper implementation in your design.
