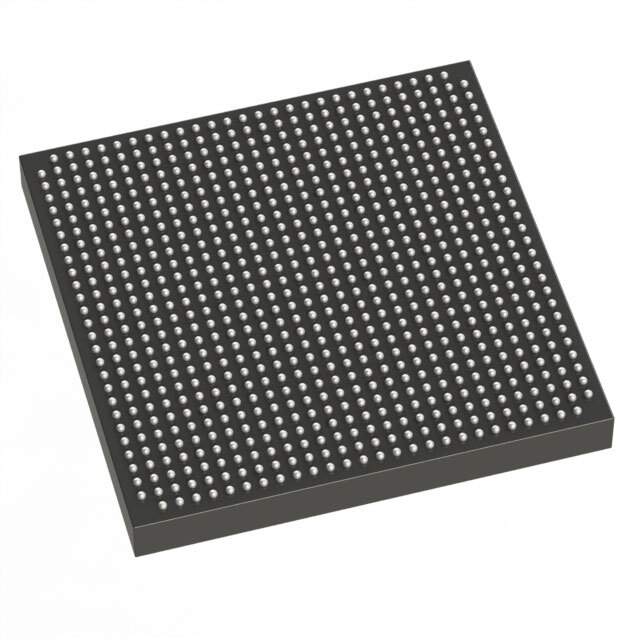

EP3SL150F780C4N Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series Stratix III L
Number of LABs/CLBs 5700
Number of Logic Elements/Cells 142500
Total RAM Bits 6543360
Number of I/O 488
Operating Supply Voltage 0.86 V ~ 1.15 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 780-BBGA, FCBGA
Manufacturer Package 780-FBGA (29x29)
Win Source Part Number 773957-EP3SL150F780C4N
Popularity Medium
Supply and Demand Status Limited
Family Name EP3SL150
Introduction Date November 01, 2006
ECCN 3A001.a.7.a
Country of Origin Republic of Korea
Estimated EOL Date 2021
Ultra Librarian 3D Model Ultra Librarian EP3SL150F780C4N CAD Model

Description

The Altera EP3SL150F780C4N is a member of the Stratix III L series and has 488 I/O pins, 5700 LABs/CLBs, and 142500 logic elements/cells.

  • Operating Supply Voltage: 0.86 V to 1.15 V
  • Mounting: SMD
  • Total RAM: 6543360 bits
  • Package: 780-BBGA, FCBGA (29x29)
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2021
