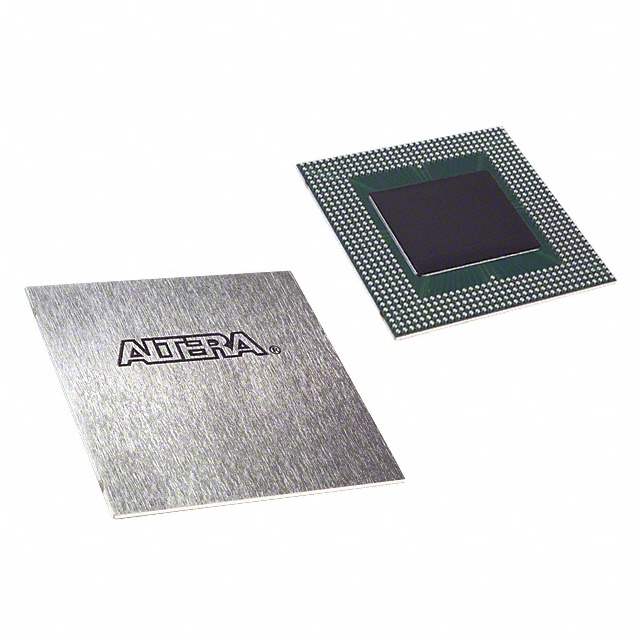

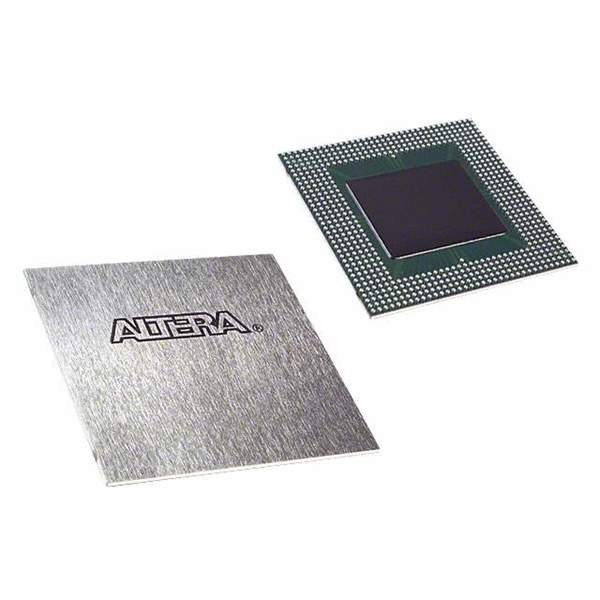

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Altera
Status Obsolete(EOL)
Number of LABs/CLBs 3840
Number of Logic Elements/Cells 38400
Total RAM Bits 327680
Number of I/O 488
Number of Gates 1772000
Supply Voltage - Operating 1.71 V to 1.89 V
Mounting SMD (SMT)
Temperature Range - Operating 0°C to 85°C (TJ)
Case / Package 652-BGA (45x45)
Win Source Part Number 203675-EP20K1000CB652C8
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EP20K1000CB652C8 CAD Model

Description

Altera APEX 20K FPGA: EP20K1000CB652C8

The EP20K1000CB652C8 is a versatile member of the Altera APEX 20K family, designed for constructing sophisticated, high-performance digital solutions. Its architecture supports intensive computational tasks and rapid data exchange.
  • Applications:
    • Digital video processing
    • Real-time control systems
    • Networking interface cards
    • Datacom and telecom systems
  • Features and Benefits:
    • Lower power consumption while maximizing output.
    • High-density I/O support for enhanced connectivity.
    • Optimized latency handling for time-sensitive applications.
  • Additional Details: This FPGA enables versatile design opportunities with its extensive set of tools, ensuring scalable and modular solutions for various digital environments.
