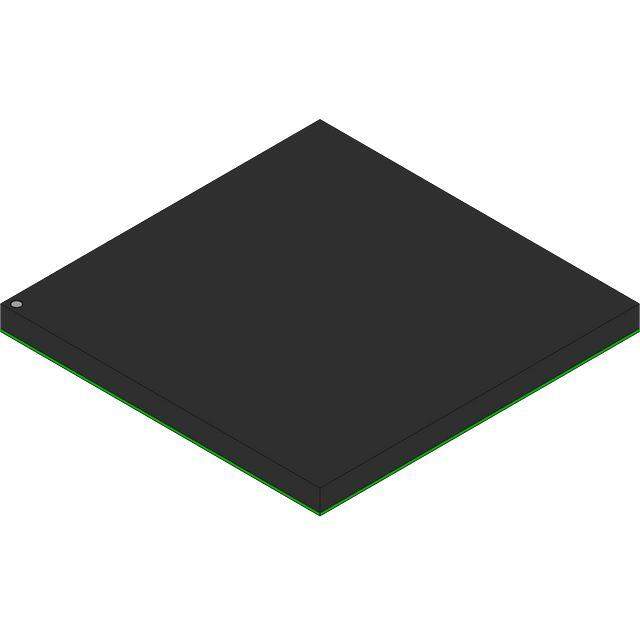

EP1S30B956C5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series Stratix
Number of LABs/CLBs 3247
Number of Logic Elements/Cells 32470
Total RAM Bits 3317184
Number of I/O 683
Operating Supply Voltage 1.425 V ~ 1.575 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 956-BBGA, FCBGA
Manufacturer Package 956-BGA (40x40)
Win Source Part Number 773824-EP1S30B956C5
Popularity Medium
Supply and Demand Status Limited
Family Name EP1S30
Introduction Date September 06, 2001
ECCN 3A001.a.7.a
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EP1S30B956C5 CAD Model

Description

The Altera Stratix EP1S30B956C5 is an obsolete integrated circuit that is designed to operate in a temperature range of 0°C to 85°C (TJ). It features:

  • Package: 956-BBGA, FCBGA
  • Mounting: Surface Mount
  • Operating Supply Voltage: 1.425 V to 1.575 V
  • I/Os: 683
  • LABs/CLBs: 3247
  • Logic Elements/Cells: 32470
  • Total RAM: 3317184 bits
  • Family: EP1S30
  • Series: Stratix
  • Status: Limited Supply
