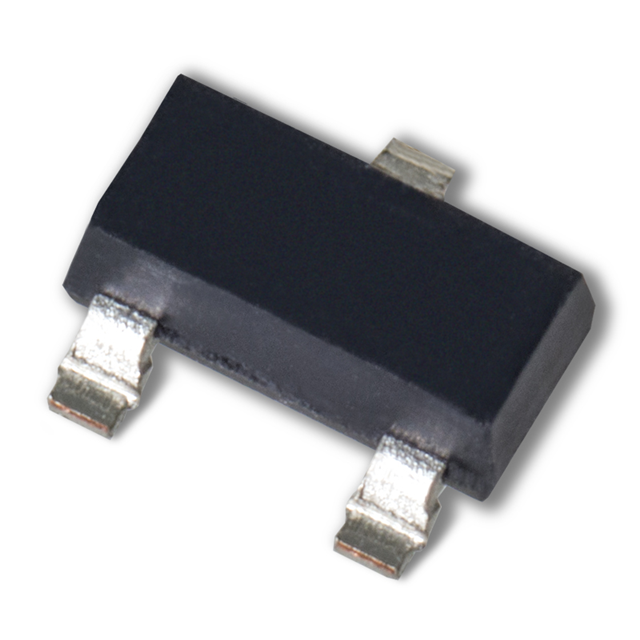

The SST501 is a small signal N-Channel JFET manufactured by Calogic, LLC. This JFET is designed for low-noise amplifier applications, analog switching, and impedance converters. It offers high input impedance, low noise, and good gain characteristics, making it suitable for a variety of precision analog circuits.

Applications:

• Low-Noise Amplifiers: Used in preamplifiers and other low-noise amplifier circuits for signal amplification with minimal noise.
• Analog Switches: Employed as analog switches in signal routing and multiplexing applications.
• Impedance Converters: Utilized as impedance converters to match high-impedance sources to low-impedance loads.
• Mixers: Integrated into mixer circuits for frequency conversion in radio frequency (RF) applications.
• Sample-and-Hold Circuits: Used in sample-and-hold circuits for data acquisition and signal processing.

Features:

• N-Channel JFET: Offers low noise and high input impedance characteristics.
• High Input Impedance: Provides high input impedance, minimizing loading effects on input signals.
• Low Noise: Offers low noise performance, making it suitable for sensitive signal amplification.
• High Gain: Provides good gain characteristics for signal amplification and buffering.
• Small Package: Available in a small package for space-saving designs.

Benefits:

• Improved Signal-to-Noise Ratio: Low noise performance enhances the signal-to-noise ratio in amplifier circuits.
• Reduced Loading Effects: High input impedance minimizes loading effects on input signals, preserving signal integrity.
• Versatile Performance: Good gain and low noise characteristics make it suitable for various analog applications.
• Simplified Design: Simple biasing requirements simplify circuit design.
• Compact Size: Small package reduces board space requirements in space-constrained applications.

Additional Details:

The SST501 JFET operates by controlling the current flow between the source and drain terminals with a voltage applied to the gate terminal. The key specifications include the gate-source cutoff voltage, drain current, and transconductance. The operating temperature range is typically from -55°C to +150°C. It's important to properly bias the JFET to achieve optimal performance in specific applications. Common packages include TO-92 and surface mount options.
