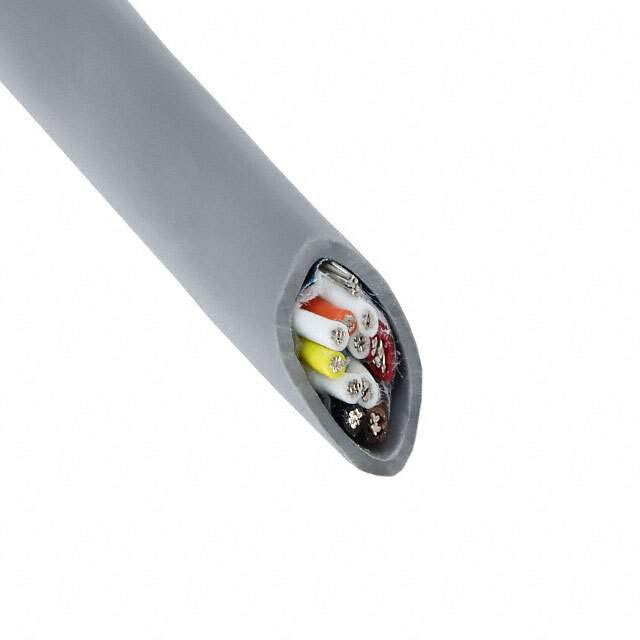

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr Alpha Wire
Series EcoCable® Mini
Package Spool
Cable Type Multi-Pair
Number of Conductors 10 (5 Pair Twisted)
Wire Gauge 28 AWG
Conductor Strand 19/40
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyphenylene Ether, Modified (mPPE)
Jacket (Insulation) Diameter 0.194" (4.93mm)
Shield Type Foil
Length 100.0' (30.5m)
Jacket Color Slate
Ratings ISO 10993, UL Style 21460
Features Biological Compatibility, Drain Wire, Rip Cord
Voltage 300 V
Temperature Range - Operating -40°C ~ 80°C
Jacket (Insulation) Thickness 0.0150" (0.381mm)
Conductor Insulation Polyphenylene Ether, Modified (mPPE)
Shield Material Aluminum
Shield Coverage 100%
Base Product Number 78205
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 78205SL005-ND,78205 SL005-ND,78205SL005,78205SL005-100
Standard Package 1
Win Source Part Number 957689-78205 SL005
Ultra Librarian 3D Model Ultra Librarian 78205 SL005 CAD Model

Description

The Alpha Wire 78205 SL005 is a multi-pair cable with 10 conductors (5 pair twisted).

  • Manufacturer: Alpha Wire
  • Conductors: 10 (5 pair twisted)
  • Wire Gauge: 28 AWG
  • Voltage Rating: 300V
  • Shield Coverage: 100%
  • Shield Type: Foil
  • Temperature Range: -40°C to 80°C
  • Rating: ISO 10993 and UL Style 21460
  • Package: Spool
  • Length: 100.0' (30.5m)
  • Jacket Color: Slate
  • Jacket (Insulation) Material: Polyphenylene ether, modified (mPPE)
