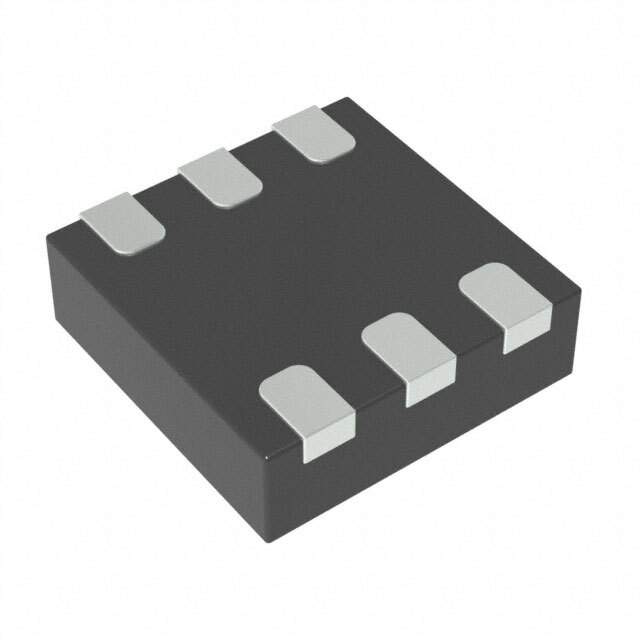

AOZ8205DI Real Image
Same model may have multiple batches, images only for reference.

AOZ8205DI

Part No AOZ8205DI
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description Five-line TVS Diode Array | TVS DIODE 5V 7.5V 6DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Tape and Reel
Type Zener
Unidirectional Channels 5
Voltage - Reverse Standoff 5V (Maximum)
Voltage - Breakdown (Minimum) 6V
Voltage - Clamping (Maximum) at Ipp 7.5V
Current - Peak Pulse (10/1000μs) 5A (8/20μs)
Power Line Protection No
Applications General Purpose
Capacitance at Frequency 15pF at 1MHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 6-UFDFN
Supplier Device Package 6-DFN (1.6x1.6)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 1145111-AOZ8205DI
Manufacturer Homepage www.aosmd.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AOZ8205DI CAD Model

Description

The AOZ8205DI is a zener type electronic component manufactured by Alpha & Omega Semiconductor Inc.

  • Feature: Power line protection
  • Current-Peak Pulse: 5A (8/20μs)
  • Reverse Standoff Voltage: 5V (maximum)
  • Breakdown Voltage: 6V (minimum)
  • Package: 6-DFN (1.6x1
  • Win Source Part Number: 1145111-AOZ8205DI
