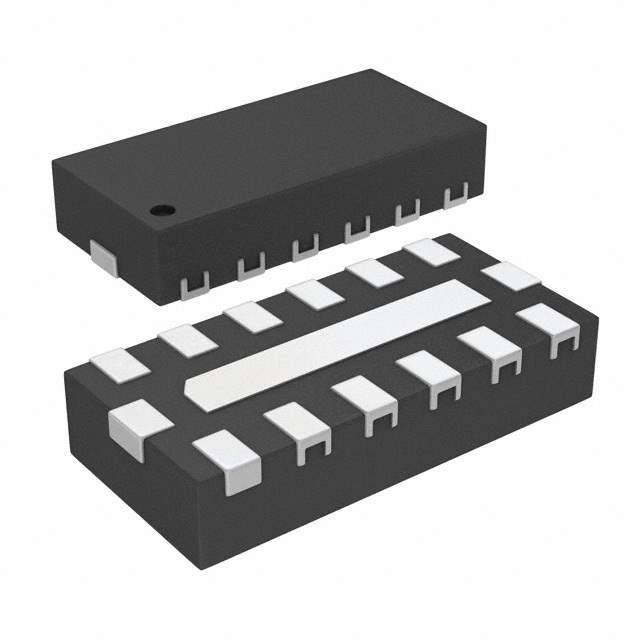

AOZ8015DIL Real Image
Same model may have multiple batches, images only for reference.

AOZ8015DIL

Part No AOZ8015DIL
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/20PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 6
Center / Cutoff Frequency 100MHz (Cutoff)
Attenuation Value -30dB @ 800MHz to 3GHz
Resistance - Channel (Ohms) 100
Current 20mA
Values R = 100 Ohms, C = 20pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 5V
Mounting SMD (SMT)
Dimension 0.118" L x 0.053" W (3.00mm x 1.35mm)
Height 0.024" (0.60mm)
Win Source Part Number 078254-AOZ8015DIL
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AOZ8015DIL CAD Model

Description

AOZ8015DIL

The AOZ8015DIL is crafted for superior integration in diverse electronic systems, offering flexibility and enhanced functionality for modern devices.

  • Applications/Projects:
    • Mobile communications
    • Industrial control systems
    • Wearable technology
    • Power tools
    • Audio/Video equipment
  • Features and Benefits:
    • Stable output across varied load conditions
    • Simplified design with integrated circuits
    • High-frequency operation
    • Durable under harsh environmental conditions
  • Additional Details:
    • Operating voltage range: 0.8V to 3.3V
    • Complies with international safety standards
    • Built-in short-circuit protection
