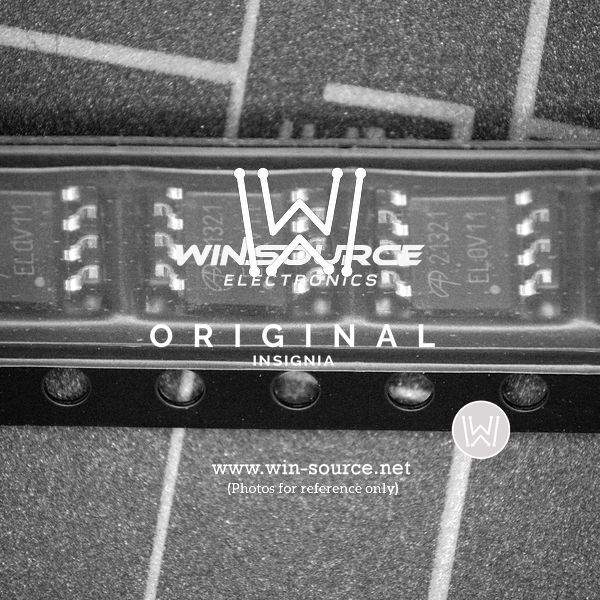

Same model may have multiple batches, images only for reference.

AOSP21321

Name: AOSP21321
Brand: Alpha & Omega Semiconductor Inc.
SKU: 806677
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AOSP21321
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	FETs - Single
Description	MOSFET P-CH 30V 8SOIC
Datasheet	AOSP21321 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Alpha & Omega Semiconductor Inc.
Packaging	Reel
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) at 25°C	11A
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Maximum) at Id, Vgs	17mOhm at 11A, 10V
Vgs(th) (Maximum) at Id	2.3V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	34nC at 10V
Maximum Vgs	±25V
Input Capacitance (Ciss) (Maximum) at Vds	1180pF at 15V
Power Dissipation (Maximum)	3.1W
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	SMD
Supplier Device Package	8-SOIC
Manufacturer Package	8-SOIC
Manufacturer Pack Quantity	3,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	806677-AOSP21321
Ultra Librarian 3D Model	Ultra Librarian AOSP21321 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AOSP21321 is a MOSFET (Metal Oxide) P-Channel FET type with a drain to source voltage of 30V. The product is mounted in an 8-SOIC packaging and has a balance supply and demand status.

Drain to Source Voltage: 30V
Packaging: 8-SOIC
Supply/Demand Status: Balanced
Manufacturer Pack Quantity: 3,000
MSL Level: 1 (Unlimited)
