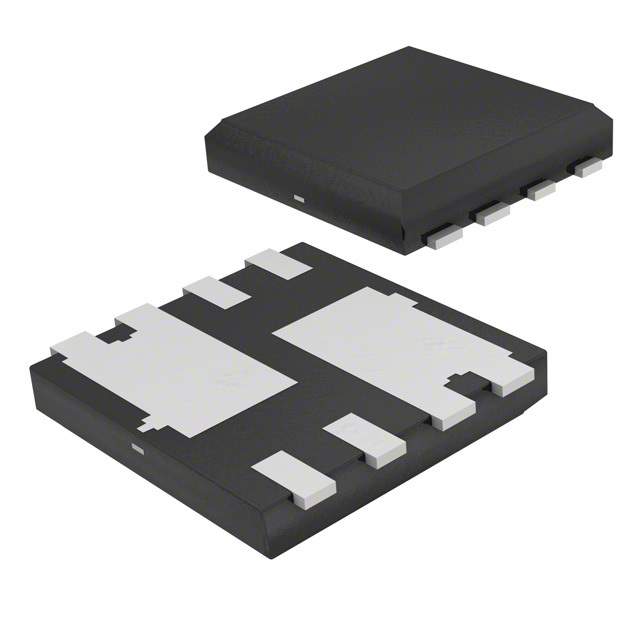

AON7812 Real Image
Same model may have multiple batches, images only for reference.

AON7812

Part No AON7812
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog FETs - Arrays
Description MOSFET 2N-CH 30V 6A / RoHS and Halogen-Free Compliant
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Bulk
Part Status Obsolete (End Of Life)
FET Type 2 N-Channel (Dual) Asymmetrical
FET Feature Standard
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) at 25°C 6A
Rds On (Maximum) at Id, Vgs 14.5mOhm at 6A, 10V
Vgs(th) (Maximum) at Id 2.2V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 15nC at 10V
Input Capacitance (Ciss) (Maximum) at Vds 600pF at 15V
Power - Max 4.1W
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 8-PowerSMD, Flat Leads
Supplier Device Package 8-DFN-EP (3x3)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803951-AON7812
Ultra Librarian 3D Model Ultra Librarian AON7812 CAD Model

Description

The AON7812 from Alpha & Omega Semiconductor Inc. is a high-performance 2 N-Channel (Dual) Asymmetrical FET.

  • Win Source Part Number: 803951-AON7812
  • Packaging: Bulk
  • Drain-to-Source Voltage: 30V
  • Maximum Power: 4.1W
  • Supplier Device Package: 8-DFN-EP (3x3)
  • Operating Temperature Range: -55°C to 150°C
