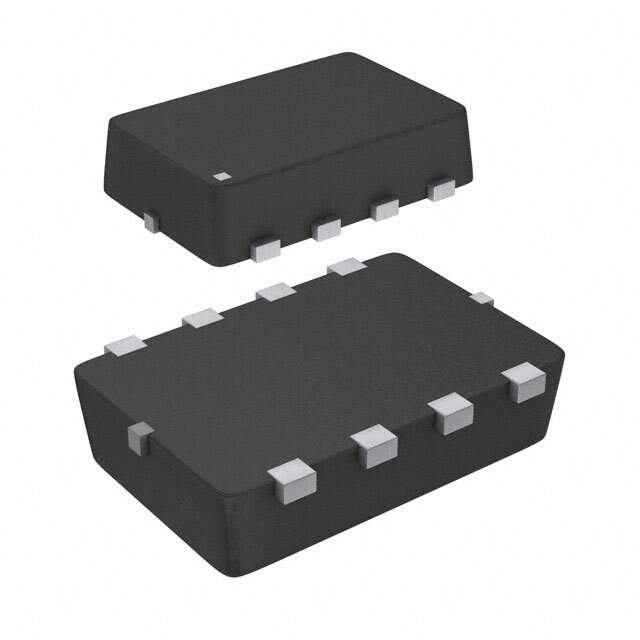

Same model may have multiple batches, images only for reference.

AON4420

Name: AON4420
Brand: Alpha & Omega Semiconductor Inc.
SKU: 800878
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AON4420
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	FETs - Single
Description	MOSFET N-CH 30V 10A SFN3X2
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Alpha & Omega Semiconductor Inc.
Packaging	Reel
Part Status	Obsolete (End Of Life)
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) at 25°C	10A
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Maximum) at Id, Vgs	20mOhm at 10A, 10V
Vgs(th) (Maximum) at Id	2.5V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	12nC at 10V
Maximum Vgs	±20V
Input Capacitance (Ciss) (Maximum) at Vds	660pF at 15V
Power Dissipation (Maximum)	1.6W
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	SMD
Supplier Device Package	8-DFN (3x2)
Manufacturer Package	8-SMD, Flat Lead
Manufacturer Pack Quantity	3,000
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Sufficient
Win Source Part Number	800878-AON4420
Ultra Librarian 3D Model	Ultra Librarian AON4420 CAD Model

Description

The Alpha & Omega Semiconductor Inc. MOSFET (Metal Oxide) is an electronic component from Alpha & Omega Semiconductor Inc.

FET Type: N-Channel
Drain to Source Voltage (Vdss): 30V
Package: 8-DFN (3x2)
Obsolete: Yes (End Of Life)
Manufacturer Pack Quantity: 3,000
Supply and Demand Status: Sufficient
