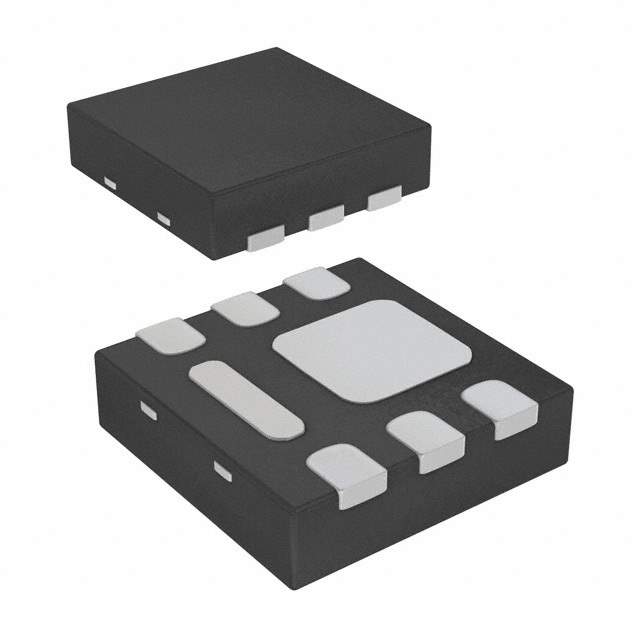

AON2400

Name: AON2400
Brand: Alpha & Omega Semiconductor Inc.
SKU: 562279
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AON2400
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	8V N-Channel MOSFET
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Alpha & Omega Semiconductor Inc.
Packaging	Reel - TR
Part Status	Obsolete(EOL)
Channel Type Type	N
Technology	MOSFET
Drain Source Voltage	8V
Current - Continuous Drain (Id) @ 25°C	8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 2.5V
Vgs(th) (Maximum) @ Id	750mV @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs	16nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds	1645pF @ 4V
Vgs (Maximum)	±5V
Power Dissipation (Maximum)	2.8W (Ta)
Rds On (Maximum) @ Id, Vgs	11 mOhm @ 8A, 2.5V
Operating Temperature Range	-55°C ~ 150°C (TJ)
Mounting	SMD
Manufacturer Package	6-DFN-EP (2x2)
Package	6-UDFN Exposed Pad
Win Source Part Number	1144967-AON2400
Manufacturer Homepage	www.aosmd.com
Family Name	AON2400
Introduction Date	April 16, 2012
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	Obsolete
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian AON2400 CAD Model

Alternative Products

Description

The Alpha & Omega Semiconductor Inc. MOSFET, part of the AON2400 family, is a 6-UDFN Exposed Pad package designed for use in discrete semiconductor products.

Drain-Source Voltage: 8V
Maximum Gate-Source Voltage: ±5V
Maximum Power Dissipation: 2.8W (Ta)
Maximum Continuous Drain Current: 8A (Ta) @ 25°C
Gate Charge (Qg): 16nC @ 4.5V
Input Capacitance (Ciss): 1645pF @ 4V
Maximum Rds On: 11 mOhm @ 8A, 2.5V
Maximum Vgs(th): 750mV @ 250μA
Status: obsolete
Estimated EOL Date: obsolete
Manufactured in: China
