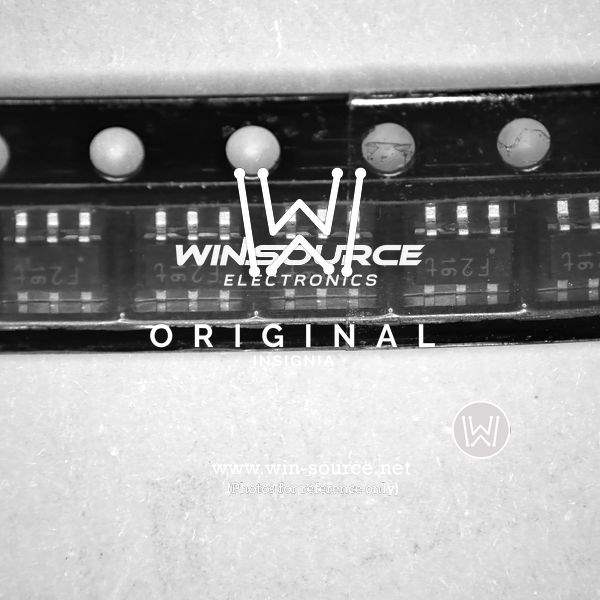

AO6602 Alpha & Omega Semiconductor Inc. AO6602 Real Image AO6602 real image AO6602 real image 2 AO6602 label picture
Same model may have multiple batches, images only for reference.
AO6602 Alpha & Omega Semiconductor Inc. AO6602 Real Image AO6602 real image AO6602 real image 2 AO6602 label picture
AO6602 Alpha & Omega Semiconductor Inc. AO6602 Real Image AO6602 real image AO6602 real image 2 AO6602 label picture
Same model may have multiple batches, images only for reference.

AO6602

Part No AO6602
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog FETs - Arrays
Description COMPLEMENTARY
Datasheet
AO6602 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr Alpha & Omega Semiconductor Inc.
Package Tape & Reel
Product Status Active
Technology MOSFET (Metal Oxide)
Configuration N and P-Channel Complementary
FET Feature Standard
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 3.5A (Ta), 2.7A (Ta)
Rds On (Max) @ Id, Vgs 50mOhm @ 3.5A, 10V, 100mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA, 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 5nC @ 10V, 5.2nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 210pF @ 15V, 240pF @ 15V
Power - Max 1.15W (Ta)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SC-74, SOT-457
Supplier Device Package 6-TSOP
Base Product Number AO660
Standard Package 3,000 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 562150-AO6602
Ultra Librarian 3D Model Ultra Librarian AO6602 CAD Model

Description

The AO6602 is a dual N and P-channel MOSFET array designed for use in various applications including power management and load switching.

  • Drain-Source Voltage: 30V
  • Continuous Drain Current: 3.5A
  • On-Resistance: 50mOhm @ 3.5A
  • Gate-Source Threshold Voltage: 2.5V
  • Packaging: Tape and Reel
  • Standard Package: 3,000 pieces
  • Mounting Type: Surface Mountable
  • Package Compatibility: SC-74, SOT-457

The AO6602 is manufactured by Alpha & Omega Semiconductor Inc., a leading provider of power semiconductor products. For more information, please refer to the datasheet.
