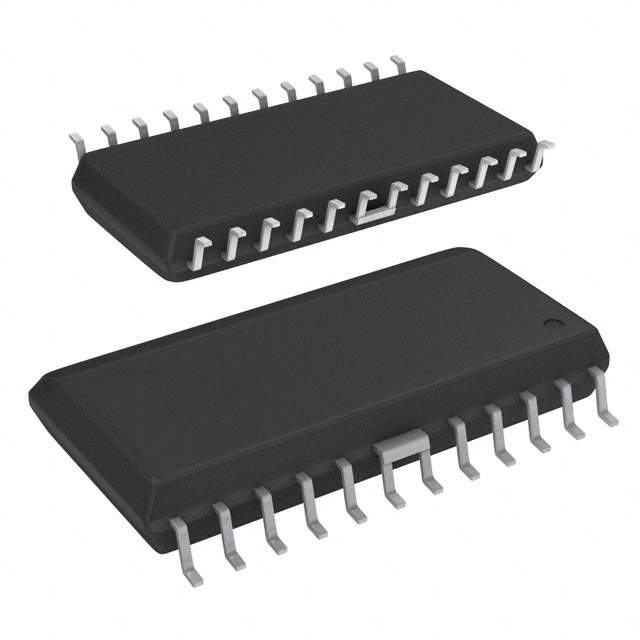

UDQ2916LB Real Image
Same model may have multiple batches, images only for reference.

UDQ2916LB

Part No UDQ2916LB
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 24SOIC / Dual Full Bridge Motor Driver 24-Pin SOIC W Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Allegro MicroSystems, LLC
Packaging Tube
Part Status Obsolete(EOL)
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel
Technology Bipolar
Applications General
Output Current 750mA
Operating Supply Voltage 4.75 V ~ 5.25 V
Voltage - Load 10 V ~ 45 V
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting SMD
Package 24-SOIC (0.295", 7.50mm Width)
Manufacturer Package 24-SOIC
Win Source Part Number 798772-UDQ2916LB
Popularity Medium
Supply and Demand Status Limited
Quantity per package 31
Family Name UDQ2916
Introduction Date July 11, 2000
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian UDQ2916LB CAD Model

Description

The UDQ2916LB is a fully integrated driver and control stage for use in brushed DC motors and bipolar stepper motors.

  • Output Current: 750mA per channel
  • Load Voltage: 10V to 45V
  • Compliance: RoHS
  • Supply Voltage: 4.75V to 5.25V
  • Package: 24-SOIC
  • Manufacturer: Allegro MicroSystems, LLC
