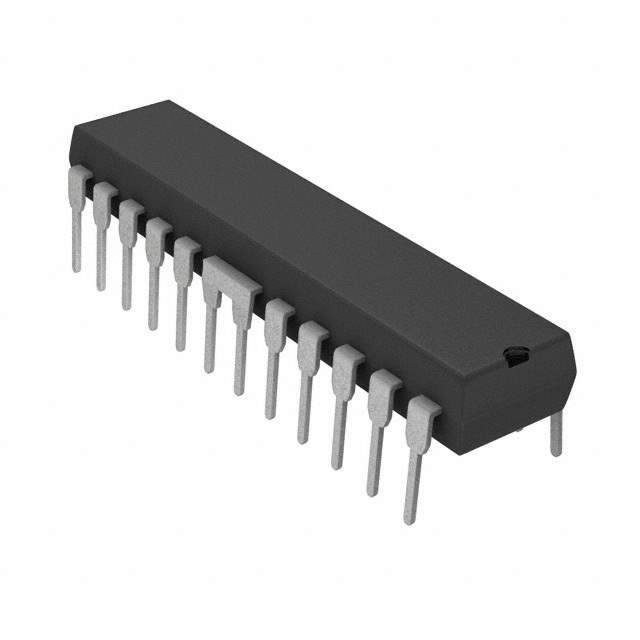

UDN2916B Real Image
Same model may have multiple batches, images only for reference.

UDN2916B

Part No UDN2916B
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 24DIP
Datasheet
UDN2916B Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Allegro MicroSystems, LLC
Packaging Tube/Rail
Status Obsolete(EOL)
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Bipolar
Applications General Purpose
Output Current 750mA
Supply Voltage - Operating 4.75 V to 5.25 V
Voltage - Load 10 V to 45 V
Temperature Range - Operating -20°C to 150°C (TJ)
Mounting Through Hole
Case / Package 24-DIP
Win Source Part Number 130397-UDN2916B
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Computers & Computer Peripherals, Industrial, Communications & Networking
Quantity per package 15
Ultra Librarian 3D Model Ultra Librarian UDN2916B CAD Model

Description

The UDN2916B is a fully integrated driver and control power stage manufactured by Allegro MicroSystems. This driver is designed for use in industrial applications and computers and computer peripherals.

  • Temperature Range: -20°C to 150°C (TJ)
  • Supply Voltage: 4.75 V to 5.25 V
  • Package: 24-DIP package
  • Mounting: Through-hole mountable
  • Popularity: Medium popularity
  • Supply and Demand Status: Limited supply and demand status
  • Package Quantity: 15 quantity per tube/rail.
