UDN2916B-T Real Image UDN2916B-T real image15073
Same model may have multiple batches, images only for reference.
UDN2916B-T Real Image UDN2916B-T real image15073
UDN2916B-T Real Image UDN2916B-T real image15073
Same model may have multiple batches, images only for reference.

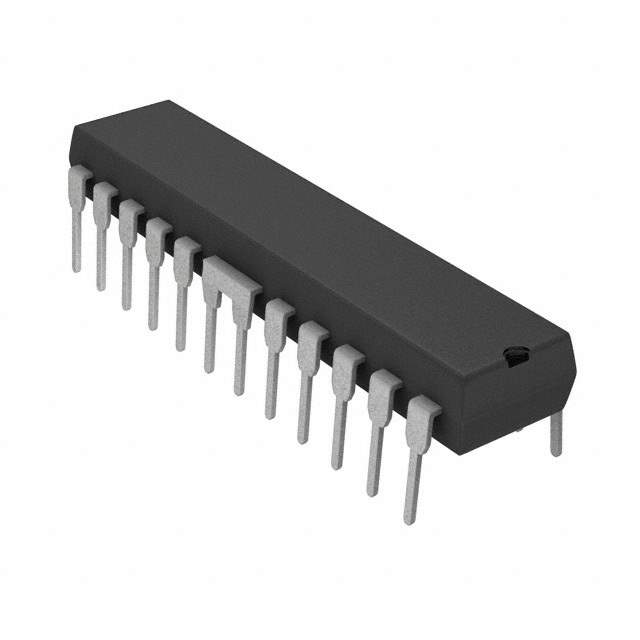

UDN2916B-T

Part No UDN2916B-T
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 24DIP / Dual Full Bridge Motor Driver 24-Pin(22+2Tab) PDIP Bat Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Allegro MicroSystems, LLC
Packaging Tube
Part Status Obsolete(EOL)
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel
Technology Bipolar
Applications General
Output Current 750mA
Operating Supply Voltage 4.75 V ~ 5.25 V
Voltage - Load 10 V ~ 45 V
Operating Temperature Range -20°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 24-PowerDIP (0.300", 7.62mm)
Manufacturer Package 24-DIP
Win Source Part Number 798769-UDN2916B-T
Popularity Medium
Supply and Demand Status Limited
Quantity per package 15
Family Name UDN2916
Introduction Date July 11, 2000
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian UDN2916B-T CAD Model

Description

The UDN2916B-T is a fully integrated bipolar driver IC from Allegro MicroSystems.

  • Output Configuration: Half-bridge
  • Number of Outputs: Four
  • Maximum Output Current: 750mA
  • Operating Supply Voltage: 4.75V to 5.25V
  • Application: General
  • Package: 24-PowerDIP (0.300", 7.62mm)
  • Family: UDN2916
  • Category: Integrated Circuits (ICs)
  • Status: Obsolete (EOL)
  • Halogen-Free: Yes
  • Popularity: Medium
  • Packaging: Tube
  • Quantity per Package: 15
