Same model may have multiple batches, images only for reference.

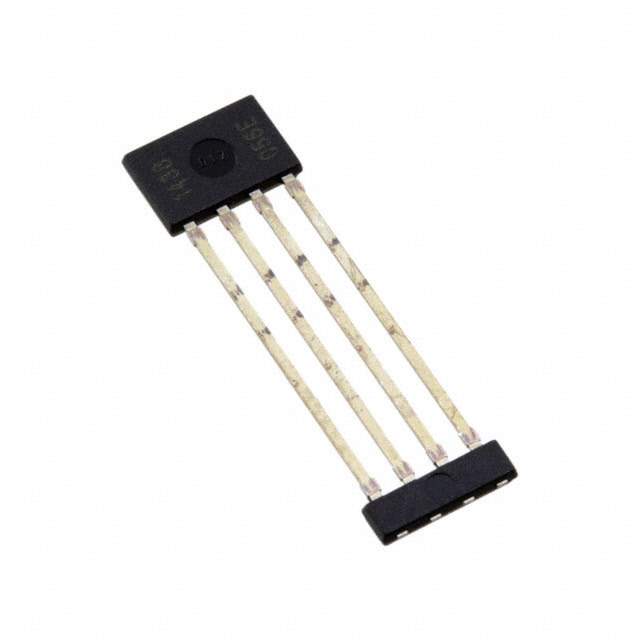

A1366LKTTN-10-T Real Image
Same model may have multiple batches, images only for reference.

A1366LKTTN-10-T

Part No A1366LKTTN-10-T
Manufacturer Allegro MicroSystems, LLC
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SENSOR HALL EFFECT ANALOG 4SIP / Hall Effect Sensor Single Axis 4-SIP
Datasheet
A1366LKTTN-10-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Linear, Compass (ICs)
Mfr Allegro MicroSystems
Package Tape & Reel
Technology Hall Effect
Axis Single
Output Type Analog Voltage
Voltage - Supply 4.5V ~ 5.5V
Current - Supply (Max) 15mA
Current - Output (Max) 10mA
Bandwidth 120kHz
Temperature Range - Operating -40°C ~ 150°C (TA)
Features Temperature Compensated
Supplier Device Package 4-SIP
Mounting Type Through Hole
Package / Case 4-SIP Module
Base Product Number A1366
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 620-1657-6,620-1657-2,620-1657-1
Standard Package 4,000
Win Source Part Number 1041975-A1366LKTTN-10-T
Ultra Librarian 3D Model Ultra Librarian A1366LKTTN-10-T CAD Model

Description

The A1366LKTTN-10-T is a Hall Effect magnetic sensor designed for linear and compass applications.

  • Feature: Temperature compensation
  • Axis: Single
  • Output Type: Analog Voltage
  • Bandwidth: 120kHz
  • Maximum Supply Current: 15mA
  • Mounting: Through a 4-SIP module
  • Voltage Supply: 4.5V to 5.5V
  • Operating Temperature: -40°C to 150°C
