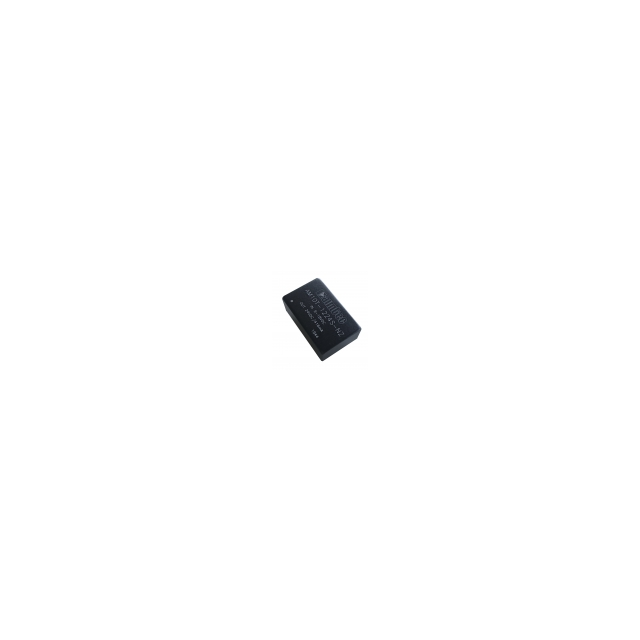

AM10TW-2405S-NZ Real Image
Same model may have multiple batches, images only for reference.

AM10TW-2405S-NZ

Part No AM10TW-2405S-NZ
Manufacturer AIMTEC
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 5V 10W  /  Isolated Module DC DC Converter 1 Output 5 ~ 5V 2A 9V - 36V Input
Datasheet
AM10TW-2405S-NZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr aimtec
Series AM10TW-NZ (10W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Current - Output (Max) 2A
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off
Efficiency 88%
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Dimension 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
Approval Agency CE, UL
Base Product Number AM10T
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2721-AM10TW-2405S-NZ
Standard Package 15
Win Source Part Number 1220893-AM10TW-2405S-NZ
Ultra Librarian 3D Model Ultra Librarian AM10TW-2405S-NZ CAD Model

Description

The AM10TW-NZ (10W) 1220893-AM10TW-2405S-NZ is an isolated module type DC-DC converter that features remote on/off.

  • Type: Isolated Module, DC-DC Converter
  • Features: Remote On/Off
  • Power: 10 W
  • Efficiency: 88%
  • Voltage Isolation: 1.5 kV
  • Mounting Type: Through-Hole
  • Package/Case: 24-DIP module, 8 leads
  • Application: ITE (Commercial)
