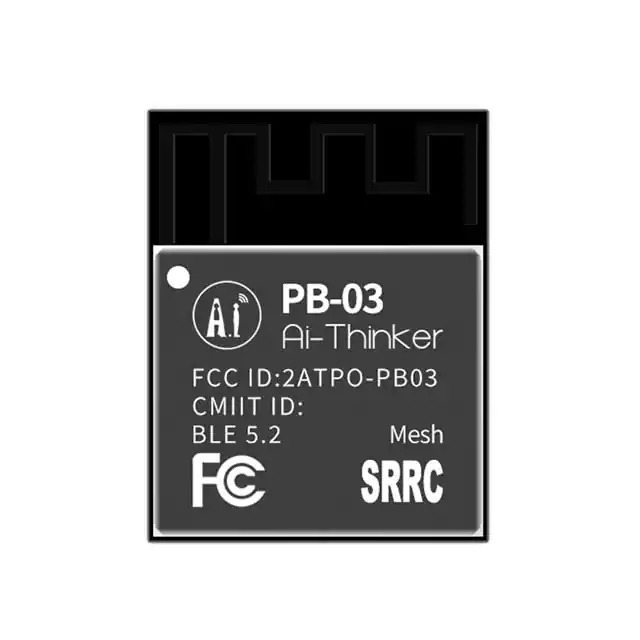

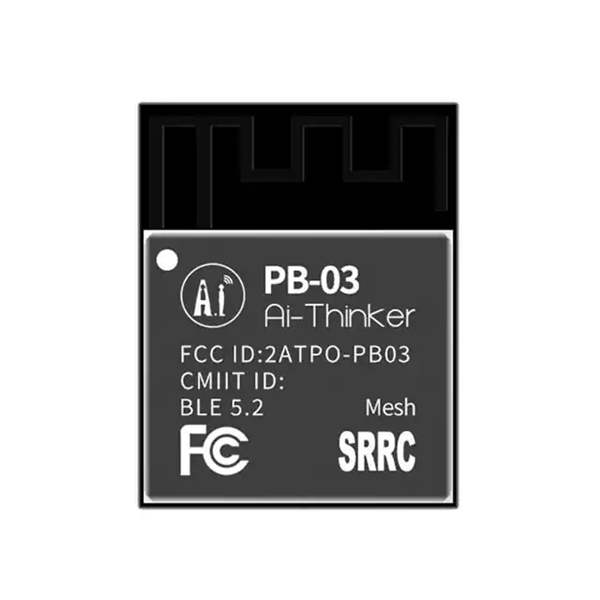

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Ai-Thinker
Series -
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth
Protocol Bluetooth v5.2
Modulation -
Frequency 2.4GHz
Data Rate 2Mbps
Power - Output 8dBm
Sensitivity -102dBm
Serial Interfaces ADC, GPIO, I²C, I²S, PDM, PWM, SPI
Antenna Type PCB Trace
Utilized IC / Part PHY6252
Memory Size 256kB Flash, 96kB ROM, 64kB SRAM
Voltage - Supply 2.7V ~ 3.6V
Current - Receiving 9.4mA
Current - Transmitting 8mA ~ 11.5mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 61-SMD Module
Win Source Part Number 1370872-PB-03
Ultra Librarian 3D Model Ultra Librarian PB-03 CAD Model

Description

The Ai-Thinker RF Transceiver Module is a high-performance electronic component designed for RF and wireless applications.

  • Frequency Range: 2.4GHz
  • Voltage Supply: 2.7V to 3.6V
  • Memory Size: 256kB Flash, 96kB ROM, and 64kB SRAM
  • Protocol: Bluetooth v5.2
  • Data Rate: 2Mbps
  • Serial Interfaces: ADC, GPIO, I²C, I²S, PDM, PWM, and SPI
  • Power Output: 8dBm
  • Sensitivity: -102dBm
