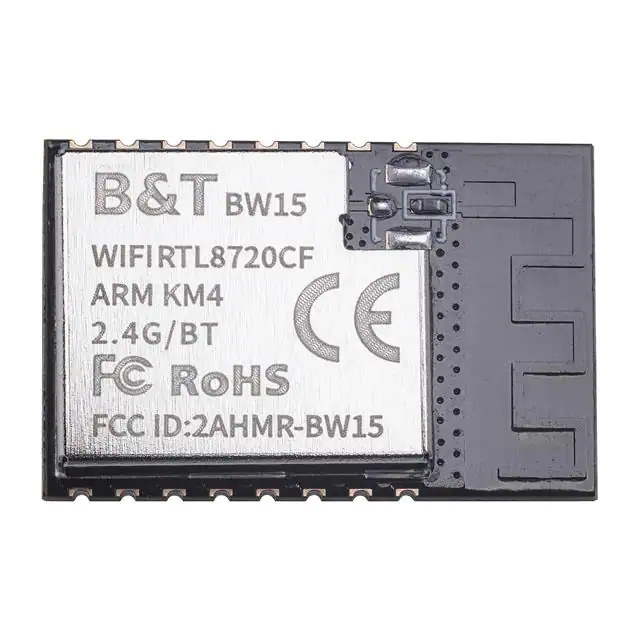

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Ai-Thinker
Series -
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth
Protocol Bluetooth v4.2
Modulation 64-QAM, BPSK, CCK
Frequency 2.4GHz
Data Rate 54Mbps
Power - Output 18dBm
Sensitivity -98dBm
Serial Interfaces ADC, GPIO, I²C, PWM, SPI, UART
Antenna Type PCB Trace, Antenna Not Included, I-PEX
Utilized IC / Part -
Memory Size 2MB Flash
Voltage - Supply 3V ~ 3.6V
Current - Receiving -
Current - Transmitting 600mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 16-SMD Module
MSL Level 1 (Unlimited)
Win Source Part Number 1370926-BW15
Ultra Librarian 3D Model Ultra Librarian BW15 CAD Model

Description

The Ai-Thinker 1370926-BW15 is a 2.4GHz RF transceiver module designed for Bluetooth communication.

  • Temperature Range: -40°C to 85°C
  • Data Rate: 54Mbps
  • Power Output: 18dBm
  • Sensitivity: -98dBm
  • Antenna: PCB trace antenna and I-PEX antenna
  • Serial Interfaces: ADC, GPIO, I²C, PWM, SPI, and UART
  • Voltage Supply: 3V to 3.6V
  • Mounting Type: Surface Mount
  • Manufacturer: Ai-Thinker
  • Product Status: Active
