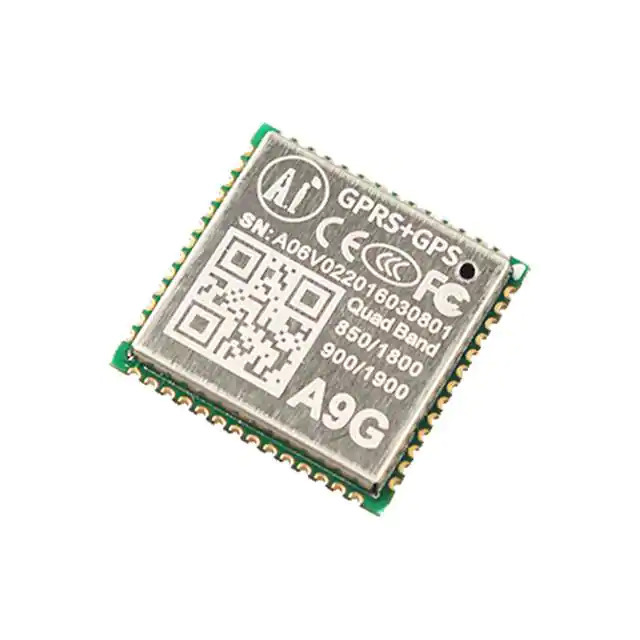

A9G Ai-Thinker
Same model may have multiple batches, images only for reference.

A9G

Part No A9G
Manufacturer Ai-Thinker
Catalog RF Transceiver Modules
Description GSM/GPRS+GPS/BDS MODULE
Datasheet
A9G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Ai-Thinker
Series -
Package Tape & Reel
Product Status Active
RF Family/Standard Cellular, Navigation
Protocol Beidou, GNSS, GPRS, GPS, GSM
Modulation -
Frequency 800MHz, 900MHz, 1.8GHz, 1.9GHz
Data Rate -
Power - Output -
Sensitivity -166dBm
Serial Interfaces ADC, GPIO, I²C, UART, USB
Antenna Type Antenna Not Included
Utilized IC / Part -
Memory Size -
Voltage - Supply 3.5V ~ 4.2V
Current - Receiving 1.03mA ~ 1.14mA
Current - Transmitting -
Mounting Type Surface Mount
Temperature Range - Operating -20°C ~ 75°C
Package / Case 54-SMD Module
MSL Level 1 (Unlimited)
ECCN 7A994
HTSUS 8517.62.0090
Win Source Part Number 1370936-A9G
Ultra Librarian 3D Model Ultra Librarian A9G CAD Model

Description

The Ai-Thinker RF transceiver module is a versatile and reliable solution for your wireless communication needs.

  • Frequency: 800MHz, 900MHz, 1.8GHz, 1.9GHz
  • Operating Temperature: -20°C ~ 75°C
  • Protocols: Beidou, GNSS, GPRS, GPS, GSM
  • Serial Interfaces: ADC, GPIO, I²C, UART, USB
  • Voltage - Supply: 3.5V ~ 4.2V
  • Package / Case: 54-SMD
  • Mounting Type: Surface Mount
